Basic Info
Usage
Mine, Gymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory
Certification
CCC, CE, CQC, EMC, LVD, RoHS, SAA, SASO
Material
Die Casting Aluminum
Packaging & Delivery
Package Size
32.00cm * 31.00cm * 13.00cm
Transport Package
Carton + EPE

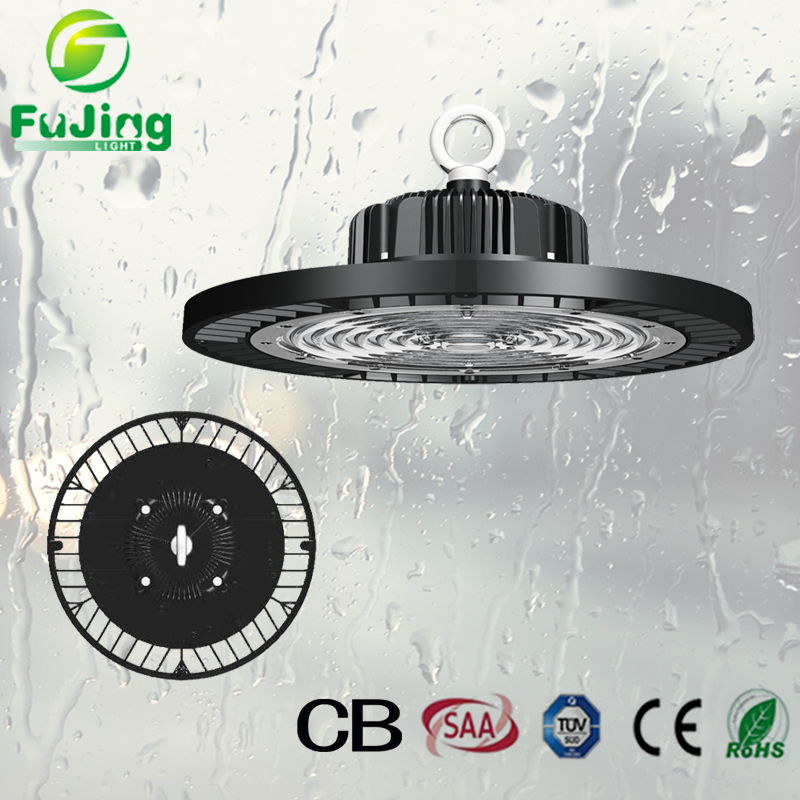

Product Description
★ Key Features
- Equipped with SMD32835 LEDs for excellent lumen output and long-lasting stability.
- High-end LED driver ensures a long lifespan with a 5-year warranty.
- Unique heat dissipation design enables LEDs to work consistently under cool circumstances.
- 0-10V, Dali, and time dimming fit for different project demands.
- Optional Microwave induction and Light compensation functions.
📋 Detailed Specifications
| Part No. |
FJ-IL100W-G15 |
FJ-IL150W-G15 |
FJ-IL200W-G15 |
| Rated Power | 100W | 150W | 200W |
| Luminous Flux | 12000LM | 18000LM | 24000LM |
| Input Voltage | 100-277VAC, 50-60Hz |
| LED Type | Lumi leds/Epistar 2835 chip |
| Color Temperature | 2700k-6500K |
| Power Factor | >0.95 |
| Beam Angle | 60/90/120 degree |
| IP Grade | IP65 |
| Material | Aluminium + PMMA Lens |
| Life Span | 50,000 hrs |
Technical Visuals

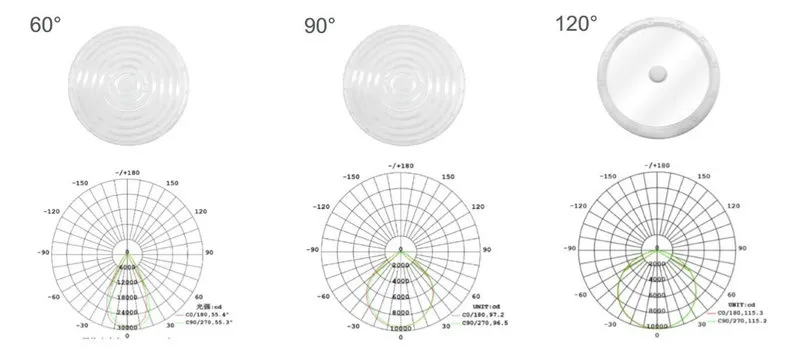

Beam Angle Overview:
Light Compensation

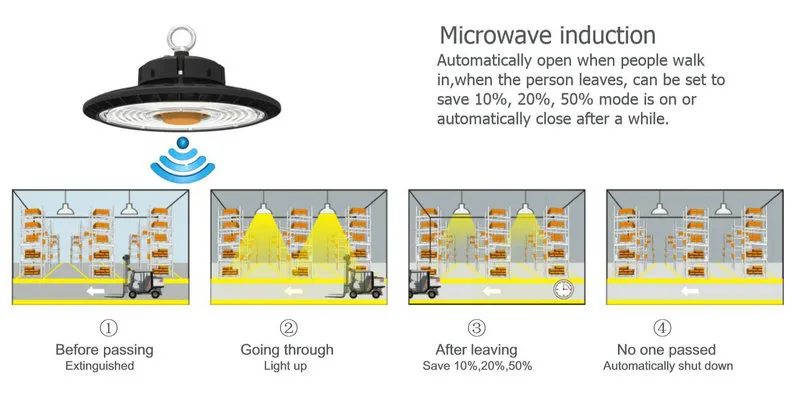

Microwave Induction
Note: Light compensation and microwave induction cannot be realized simultaneously.

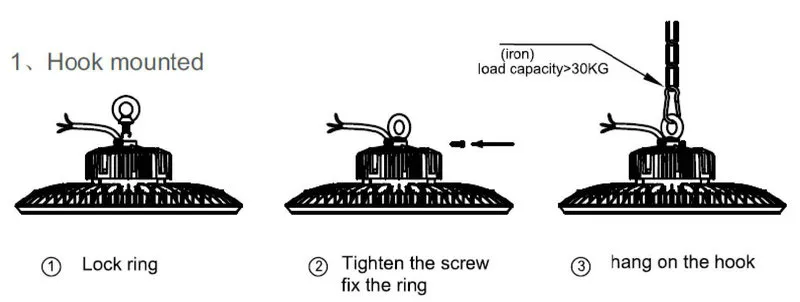

🛠 Installation Guide

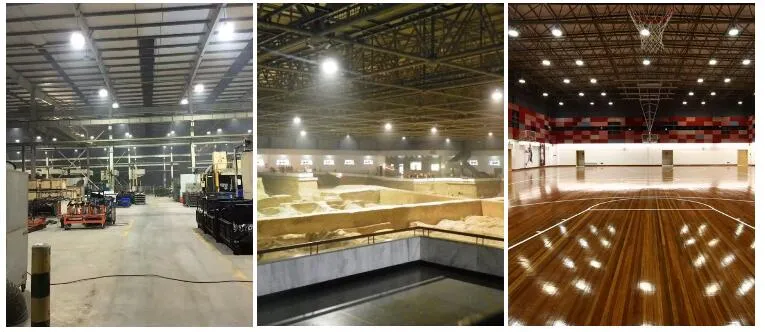

🏢 Applications
Our Services
Professional Support:
- OEM/ODM service & Laser Engraving.
- 5-year warranty with full maintenance support.
- Provision of full range IES files and test reports.
- Free Project Simulation for lighting optimization.
- 12-hour response time for all customer inquiries.
Frequently Asked Questions
1. What is your market reach throughout the region?
Our markets span across the world in every corner, supported by over seven years of experience in international trade.
2. What are your main product lines?
Our primary focus includes LED high bay lights, LED flood lights, LED tunnel lights, LED panels, LED spotlights, and LED street lights.
3. Do you provide OEM services?
Yes, we are a factory that provides comprehensive OEM services, including product customization and laser engraving.
4. What materials are used for the lighting fixtures?
We typically use high-grade housing for fast heat dissipation, copper materials, and top-quality LED chips with certified drivers (UL, TUV, SAA).
5. What kind of after-sale service do you offer?
Products come with a limited warranty. If a material or workmanship defect arises within the warranty period, we replace the items and handle shipping logistics.
6. Can I request project simulations?
Yes, we provide free LED lighting project simulations to help customers visualize and plan their installation effectively.
