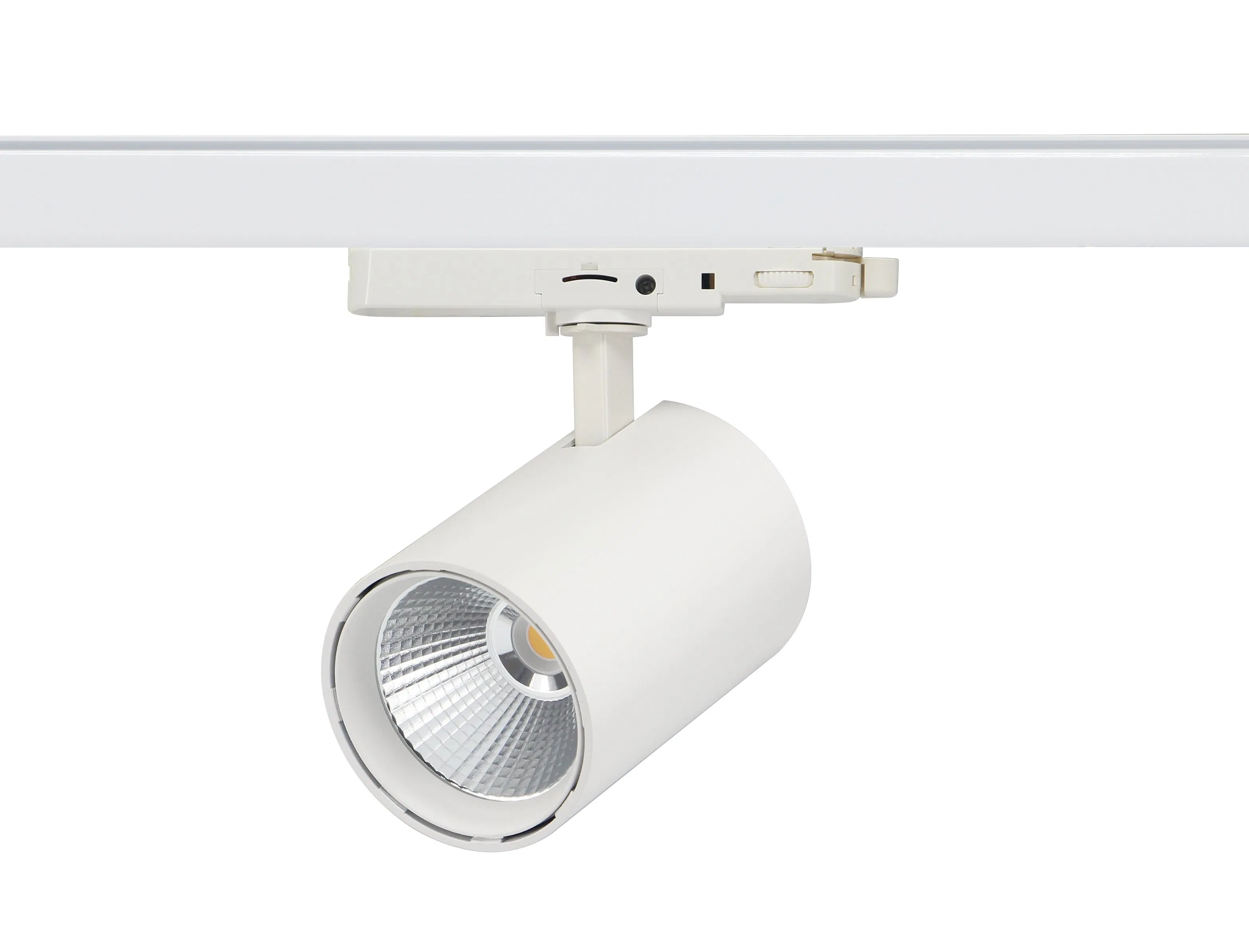

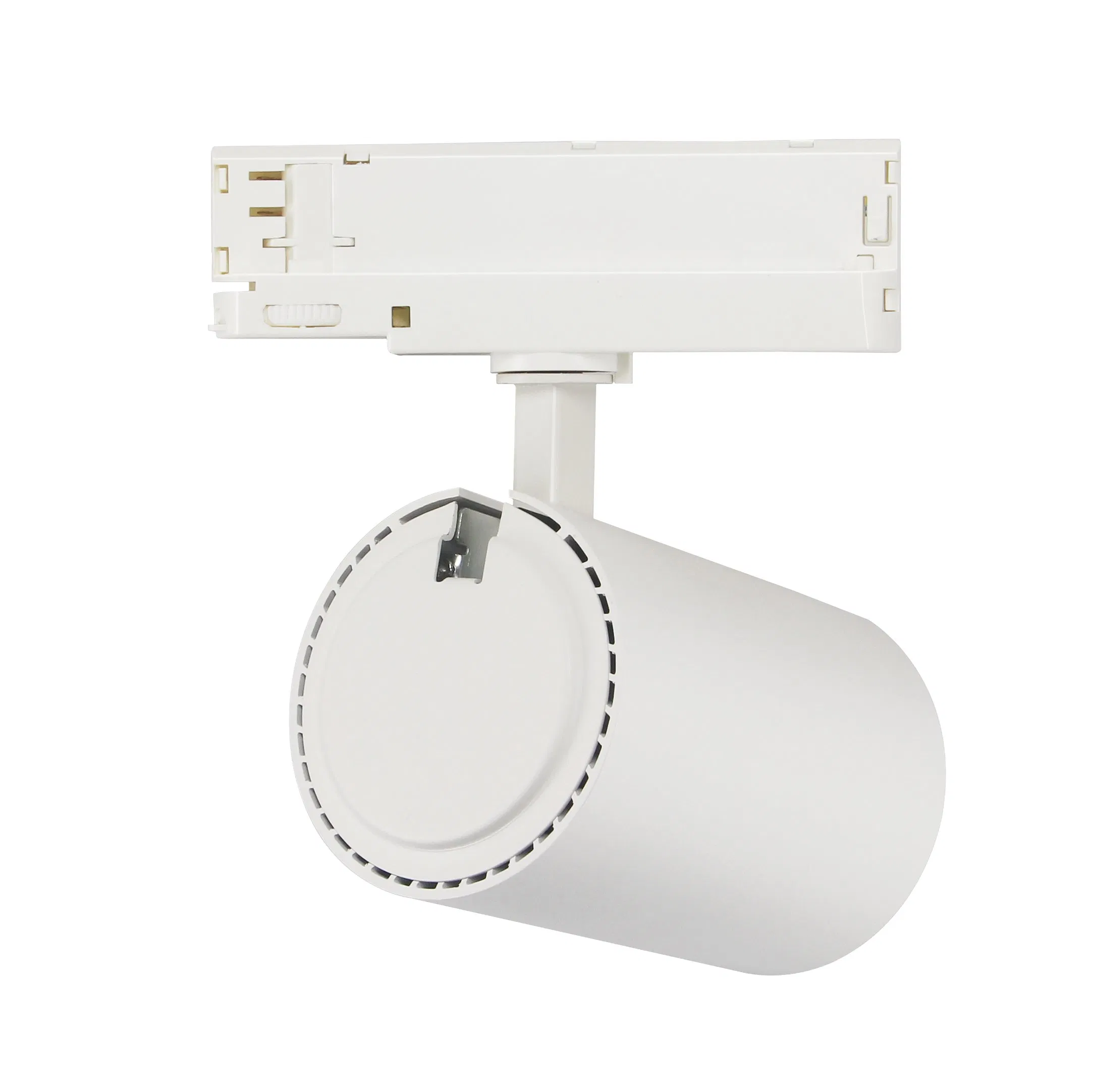

Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light
Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light
Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light
Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light
Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light
1 / 5
Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light
Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light
Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light
Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light
Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light

Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
PL-TL-HP-35W
Power
35W
Emitting Color
White
Base Type
Adaptor
Wire
2/3/4 wires
IP Rating
IP44
Input Voltage
100-240V
LED Chips Brand
CREE / Osram / Citizen
Housing Color
White, Black, Grey
Lumen Efficiency
>130lm/W

Product Description

COB LED Track Light 35W - High-performance aluminum retail track lighting designed for superior spot lighting. Featuring original Citizen/CREE COB chips with anti-glare technology, ideal for commercial spaces, galleries, and showrooms.

COB LED Track Light
💡
Advanced Optical Design: Beam angles available in 15°, 24°, 36°, and 60° with aluminum reflectors for precise light distribution. High CRI 90+ ensures vibrant color rendering.
Technical Quick Info
LED Source: Osram/CREE COB CCT: 3000K/3500K/4000K Input: AC200-240V
CRI: 90+ Lifespan: L90 / 50,000h Current: 850mA
Wattage: 35W Lumen: 3500lm @ CRI90 Efficiency: 100lm/W
Product Specifications

Key Features & Applications

✔️

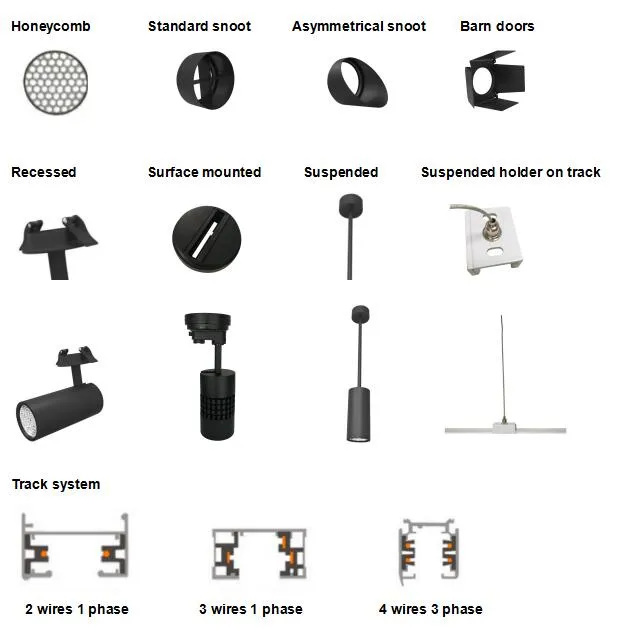

Versatile Connectivity: Supports 2-wire 1-phase, 3-wire 1-phase, 4-wire 1-phase, and 4-wire 3-phase track adapters.

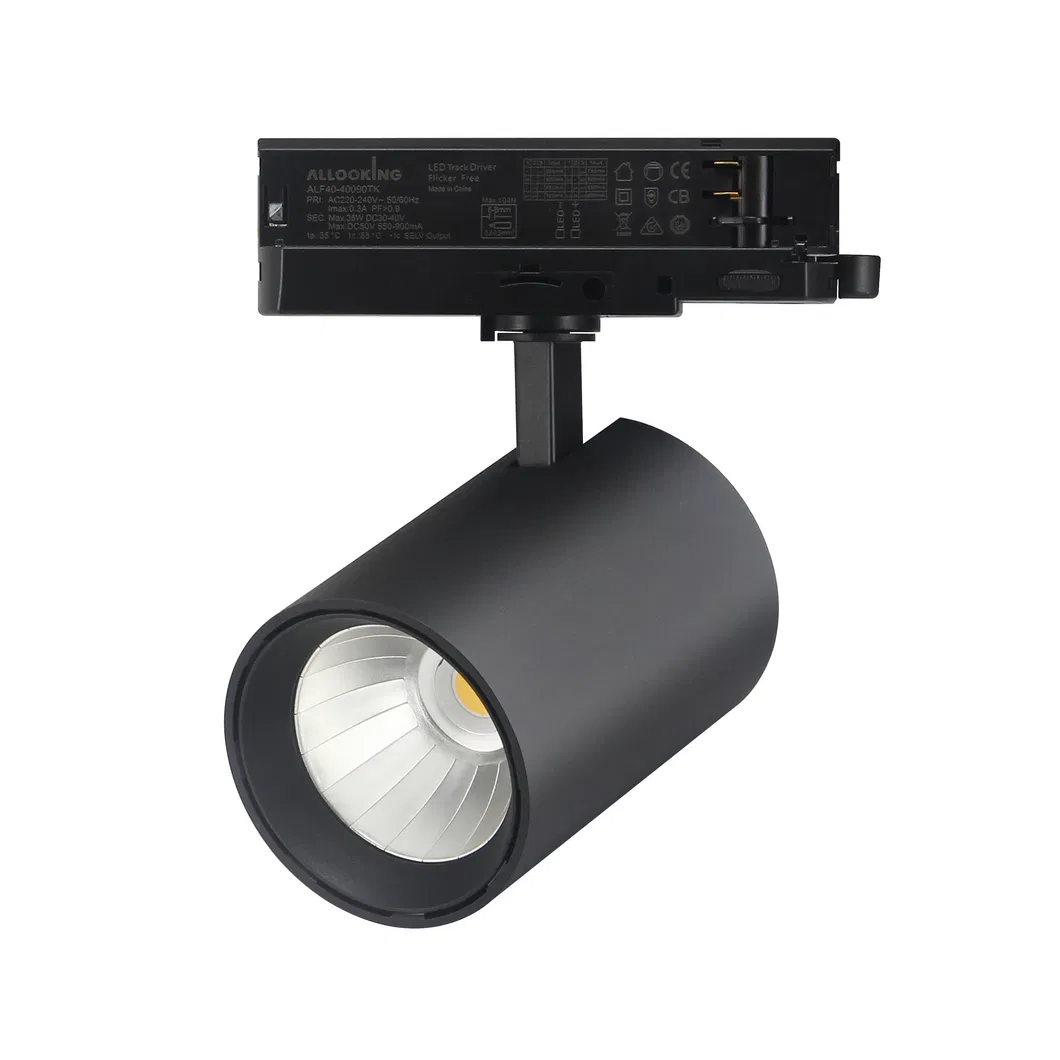

Track Lighting Design Application Scene

Typical Applications:

  • Retail Shop & Showroom Lighting
  • Commercial Galleries & Museums
  • Residential Task & Accent Lighting
  • Energy Saving & Sustainable Energy Programs

Environmental & Electrical Parameters

Ambient Temp.
-20°C to 40°C
Surface Temp.
60°C to 70°C
Humidity Range
0 to 95% (non-condensing)
Power Factor
≥ 0.92

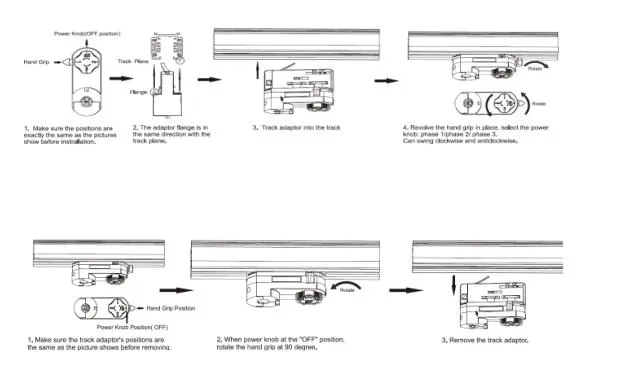

Component Diagram Installation View Design Detail

Quality Control & Warranty

🛡️
2-Year Limited Warranty: We guarantee products to be free from defects in material and workmanship under normal use. 100% inspection of raw materials and full testing before shipping.
Quality Control
Certification Packaging Product Range

Frequently Asked Questions

1. What is the power consumption and light output of this track light?
This model consumes 35W of power and delivers approximately 3500 lumens at CRI 90, providing high efficiency of over 100lm/W.
2. Which LED chip brands are used in these lights?
We use high-quality COB chips from industry leaders including CREE, Citizen, and Osram to ensure longevity and superior light quality.
3. Can this light be used with my existing track system?
Yes, our lights are highly compatible and can be configured with 2-wire, 3-wire, or 4-wire (1 or 3 phase) adapters to fit most standard track systems.
4. What is the CRI rating and why is it important?
This light features a CRI of 90+, which means it reflects colors very accurately. This is crucial for retail and gallery spaces where product color presentation is vital.
5. Is there a warranty for this product?
Yes, we provide a 2-year limited warranty from the date of manufacture covering material and workmanship defects.
6. What beam angles are available?
We offer multiple beam angle options including 15°, 24°, 36°, and 60° to meet different lighting requirements from tight spots to wide floods.
