Basic Specifications

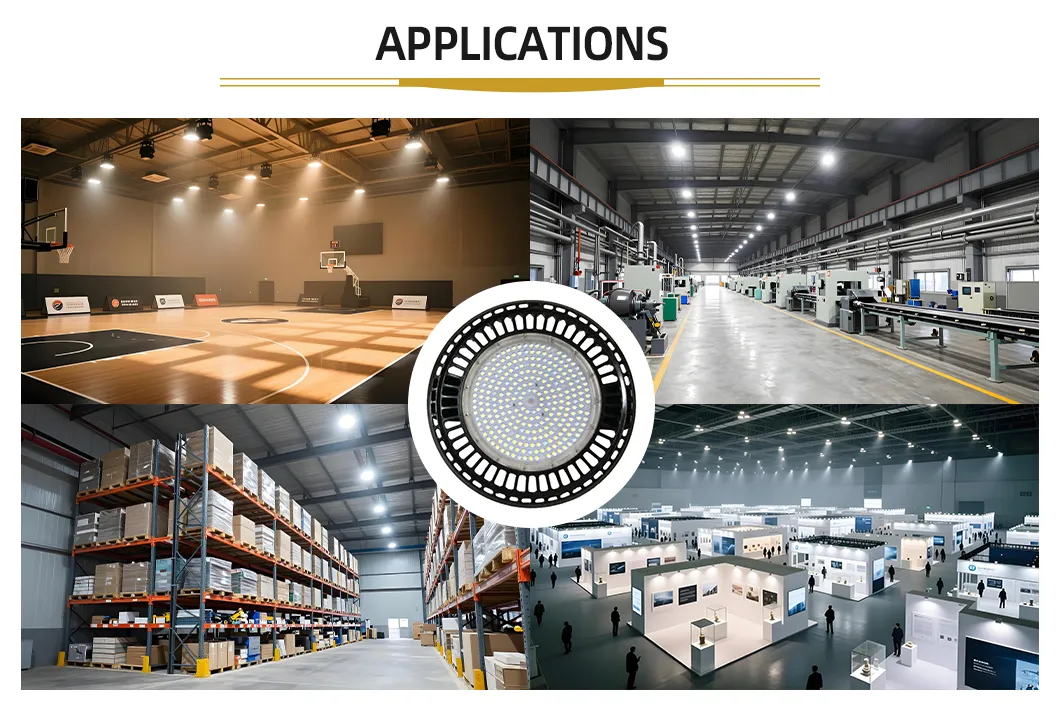

Usage
Exhibition, Warehouse, Factory
Certification
CE, PSE, RoHS, UL
Operating Voltage
AC90—300V

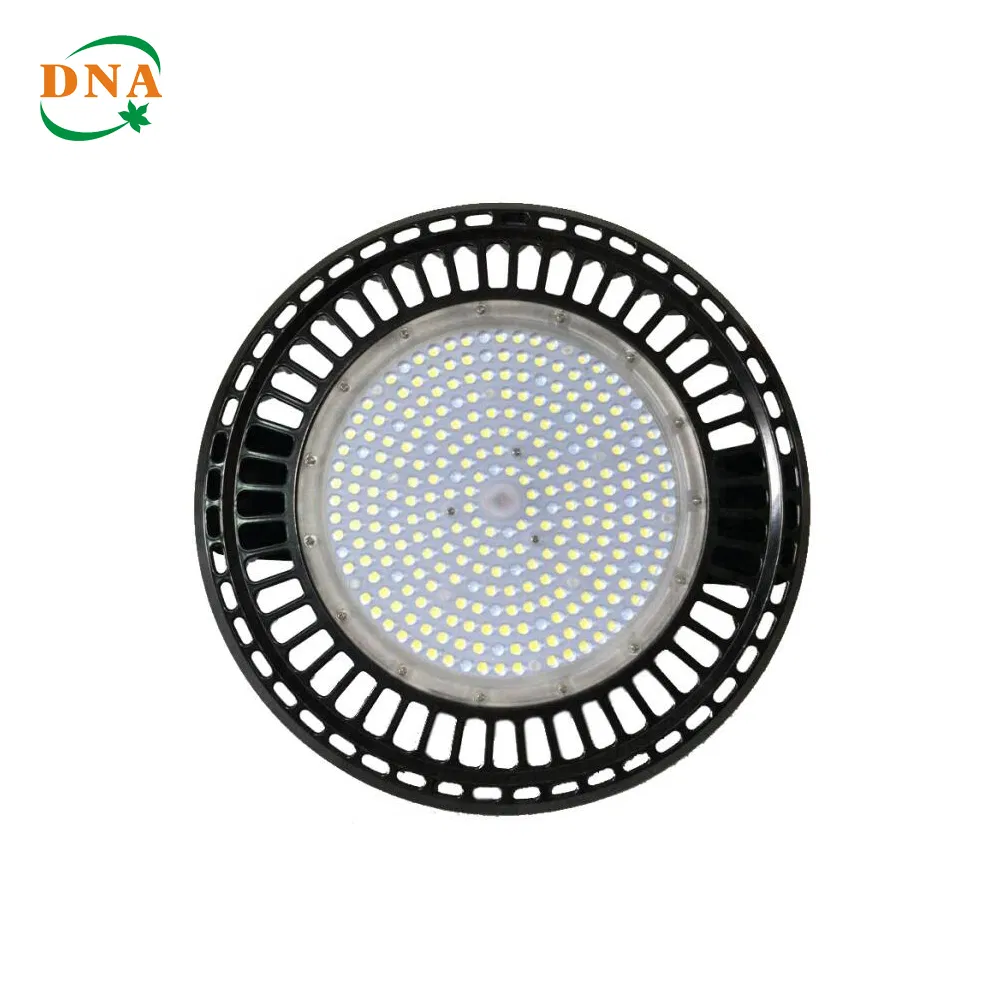

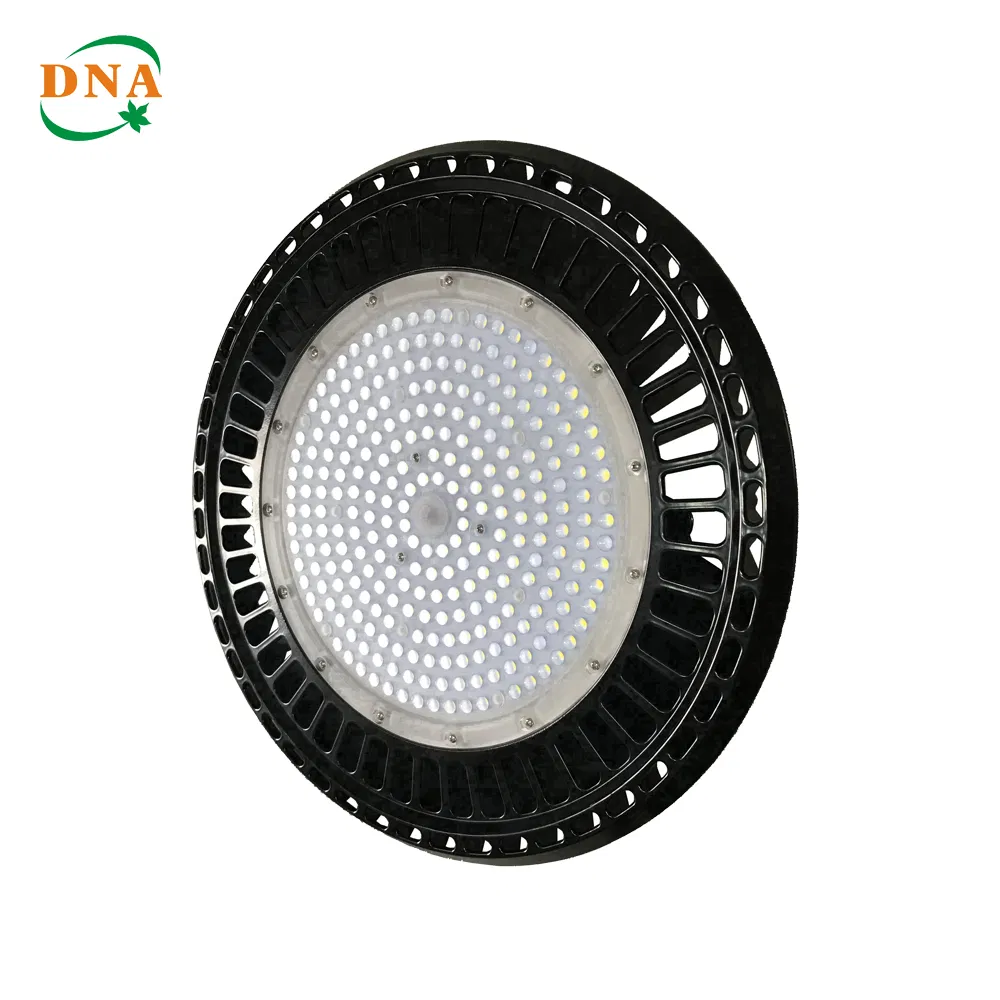

LED Light Source
SMD3030/5050
Luminous Efficiency
100—200 Lm/W

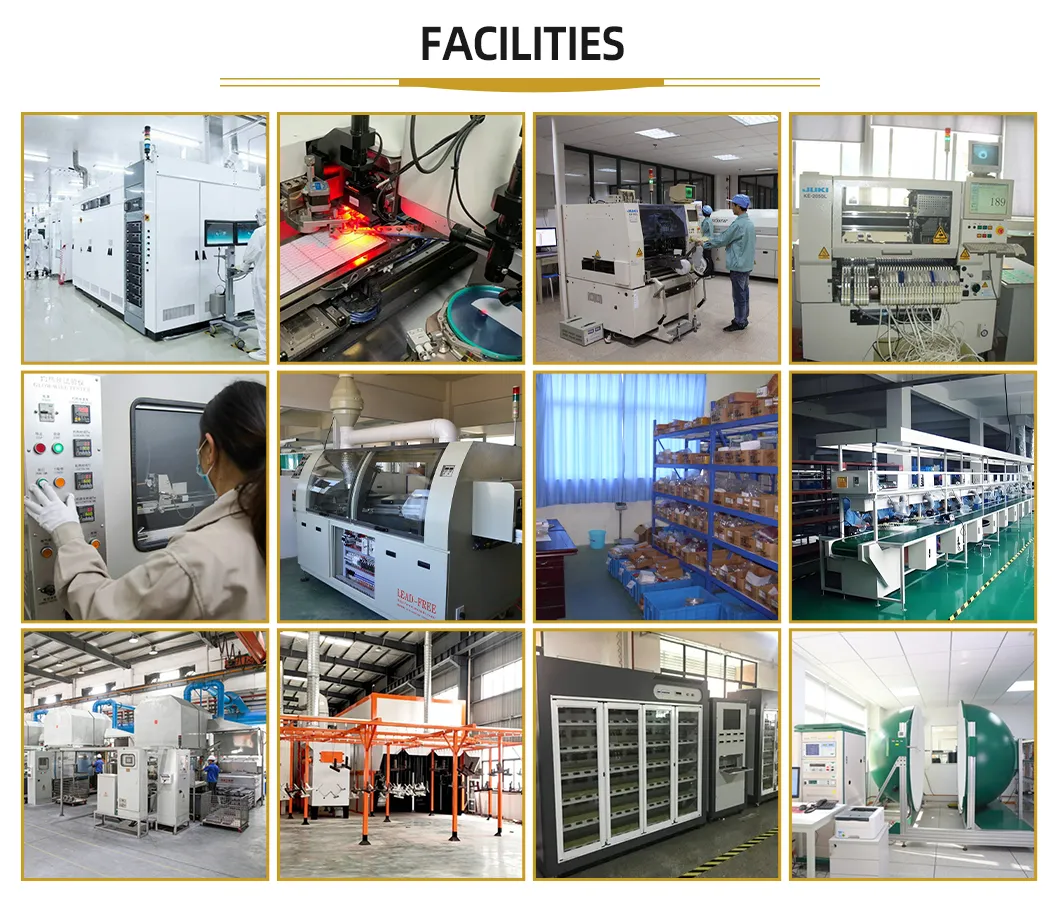

Production Capacity
1,000,000 PCS/Year
Technical Parameters
| Model |
HT03-120W |
HT03-150W |
HT03-175W |
HT03-200W |
HT03-250W |
| Power | 120W | 150W | 175W | 200W | 250W |
| Input Voltage | AC90-300V | AC90-300V | AC90-300V | AC90-300V | AC90-300V |
| Lumen/Wattage | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| Anti-surge | 10KV | 10KV | 10KV | 10KV | 10KV |
| Color Temp | 1800-7500K | 1800-7500K | 1800-7500K | 1800-7500K | 1800-7500K |
| IK Rating | 10 | 10 | 10 | 10 | 10 |
| Working Temp | -45℃~+65℃ | -45℃~+65℃ | -45℃~+65℃ | -45℃~+65℃ | -45℃~+65℃ |
| Dimensions (mm) | 340*340*175 | 340*340*175 | 340*340*175 | 340*340*175 | 340*340*175 |
| Net Weight (kg) | 5.5 | 6.0 | 6.5 | 7.0 | 7.5 |

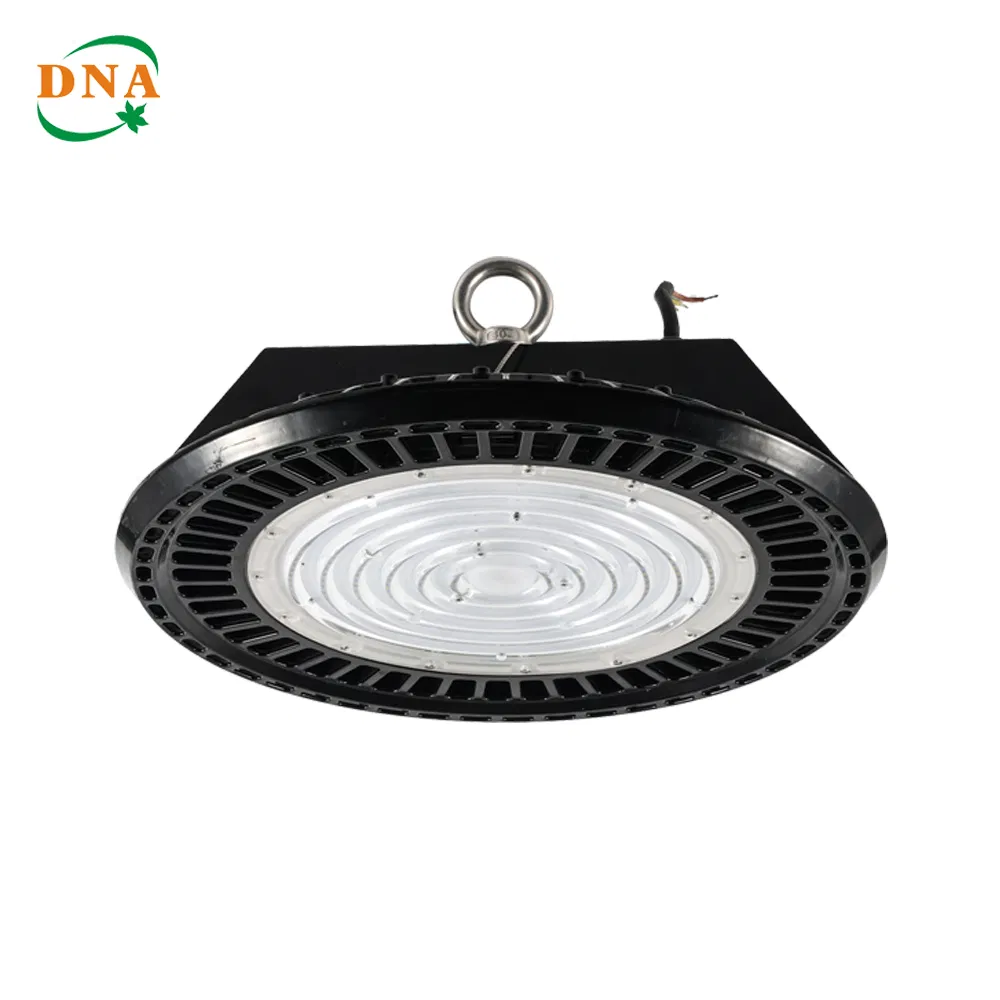

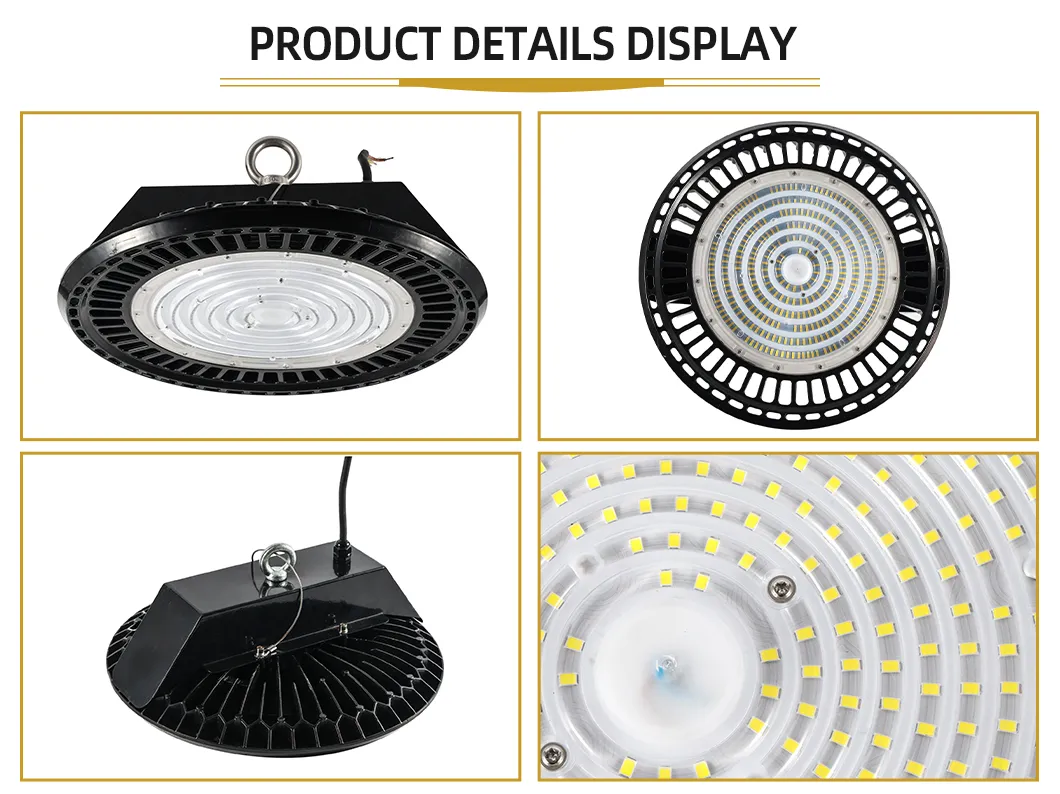

Key Characteristics
- 💎Unique proprietary design developed with advanced engineering, not found elsewhere on the market.

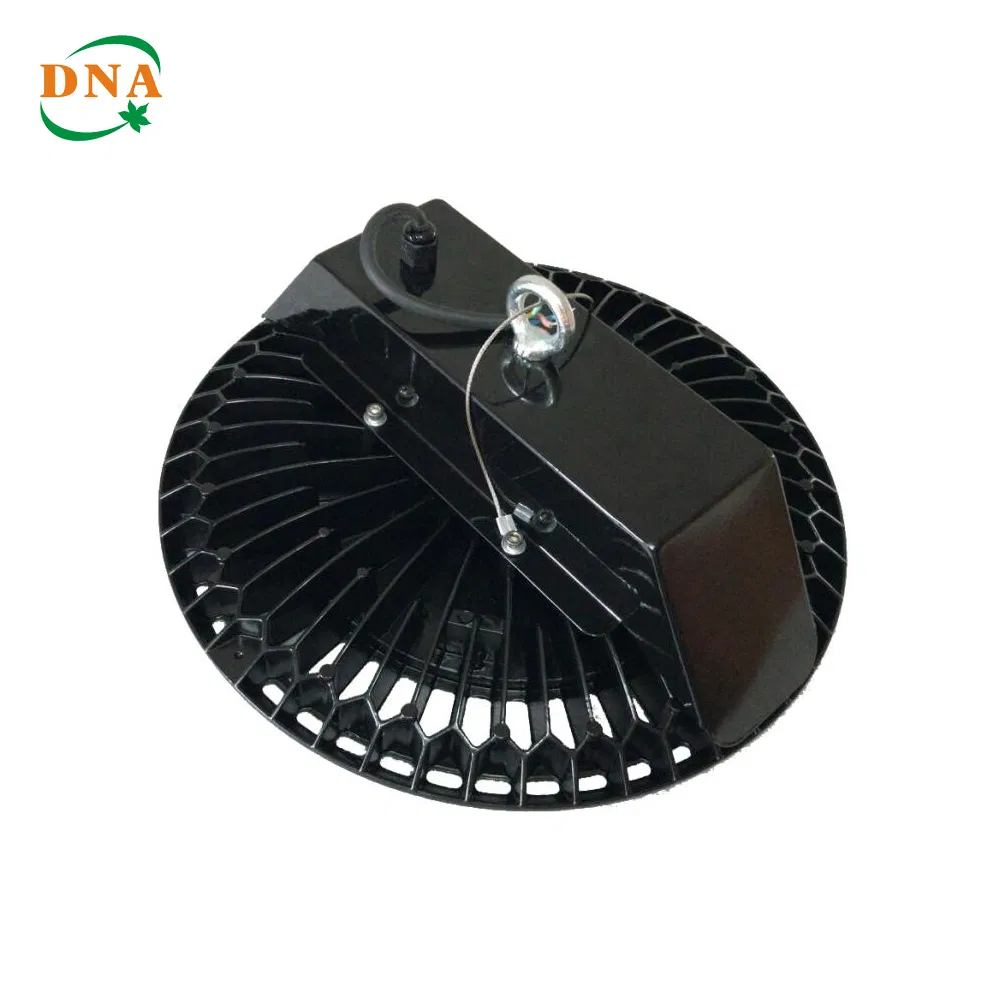

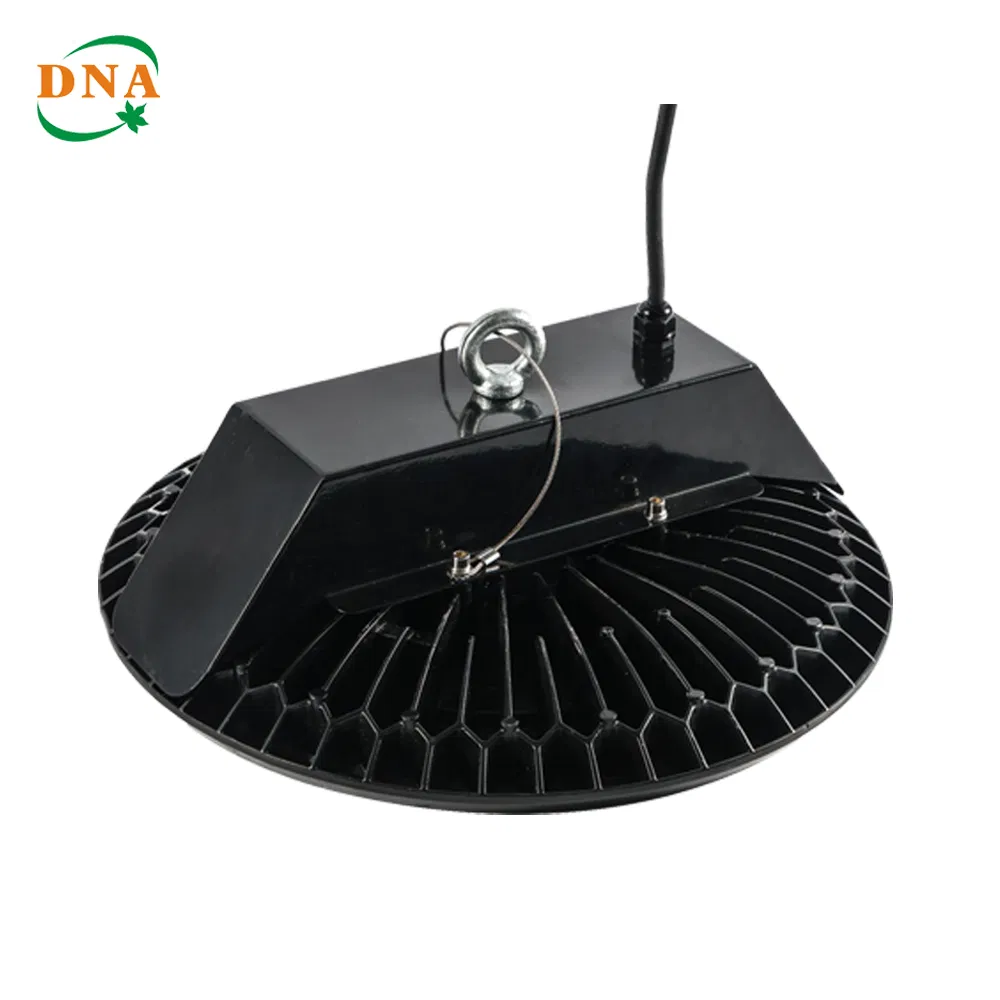

- 🏗️Heavy-duty aluminum alloy body with superior heat dissipation, supporting operation up to 250W.
- ⚡Linear, robust electrical cabinet designed to accommodate most leading LED drivers globally.
- 🛡️Equipped with an extra safety belt for secondary security guarantee during overhead installation.
Frequently Asked Questions
Q1. Are you the original manufacturer of these lights?
Yes, we are an original manufacturer with production expertise in lighting products dating back to 2001.
Q2. Is there a minimum order quantity (MOQ) for the HT03?
No, we have no strict quantity requirements. You can place an order for as little as one set.
Q3. Can the LED lights be customized for specific technical needs?
Certainly. We offer customization, such as adjusting the spectral output to ensure lamps emit less than 1% blue light if required.
Q4. What is the standard warranty period for this product?
We offer a flexible warranty ranging from three to ten years, depending on your specific quality and project requirements.
Q5. What is your policy regarding after-sales support and defects?
We maintain a reliable after-sale policy. In the event of any functional problems, we provide free replacements.
Q6. What is the expected lifespan of the HT03 High Bay Light?
The HT03 series is designed for long-term industrial use with a rated lifespan exceeding 50,000 hours.
