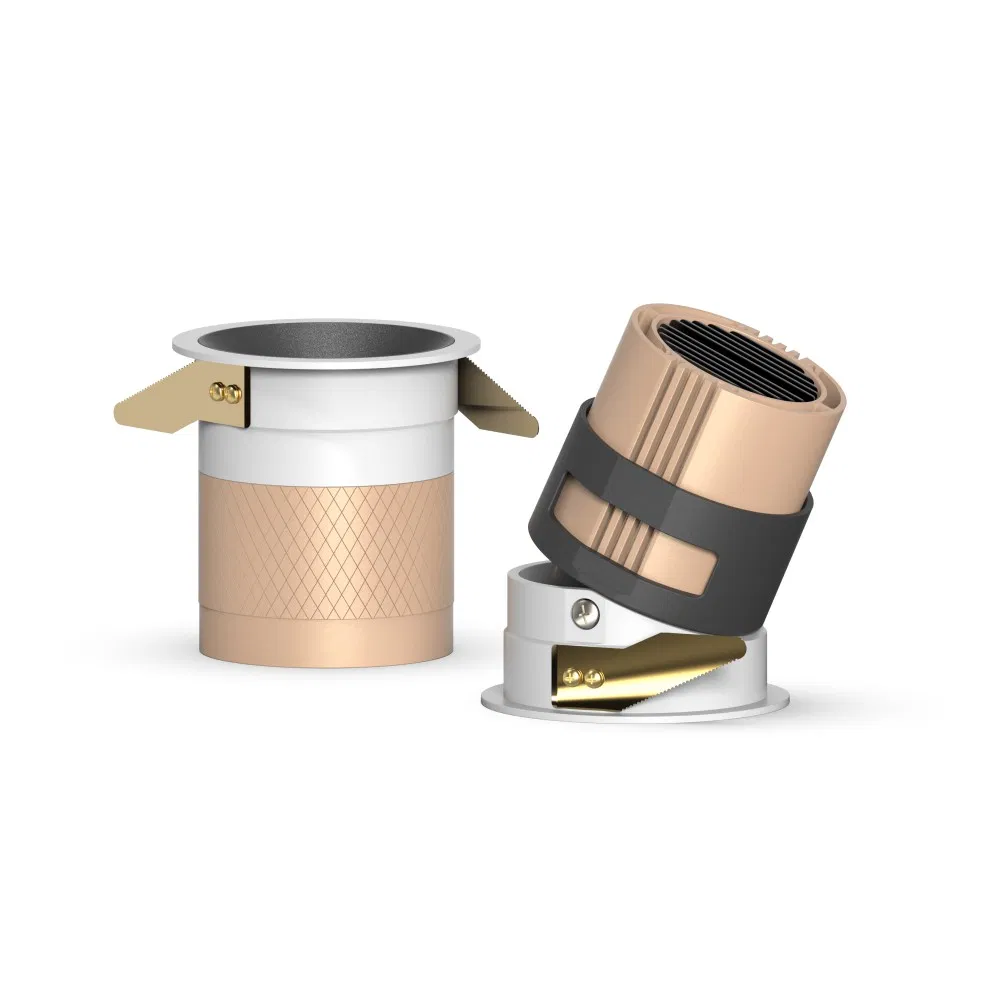

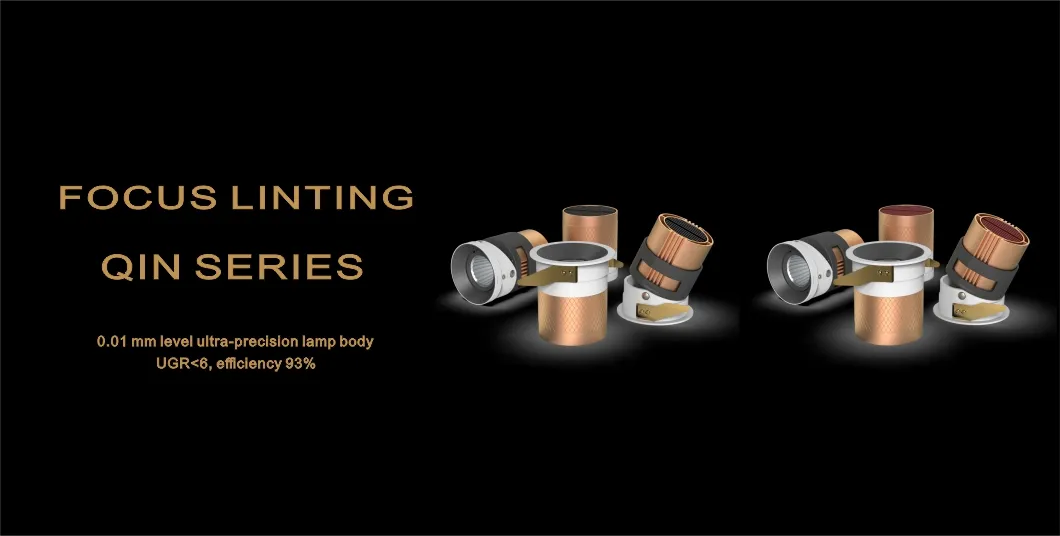

| Recessed Mounted Trim/Trimless LED Downlight Specifications | |
|---|---|
| Model NO. | FL-QIN-SERIES |
| Input Voltage | AC110V, AC220V, DC24V, DC48V |

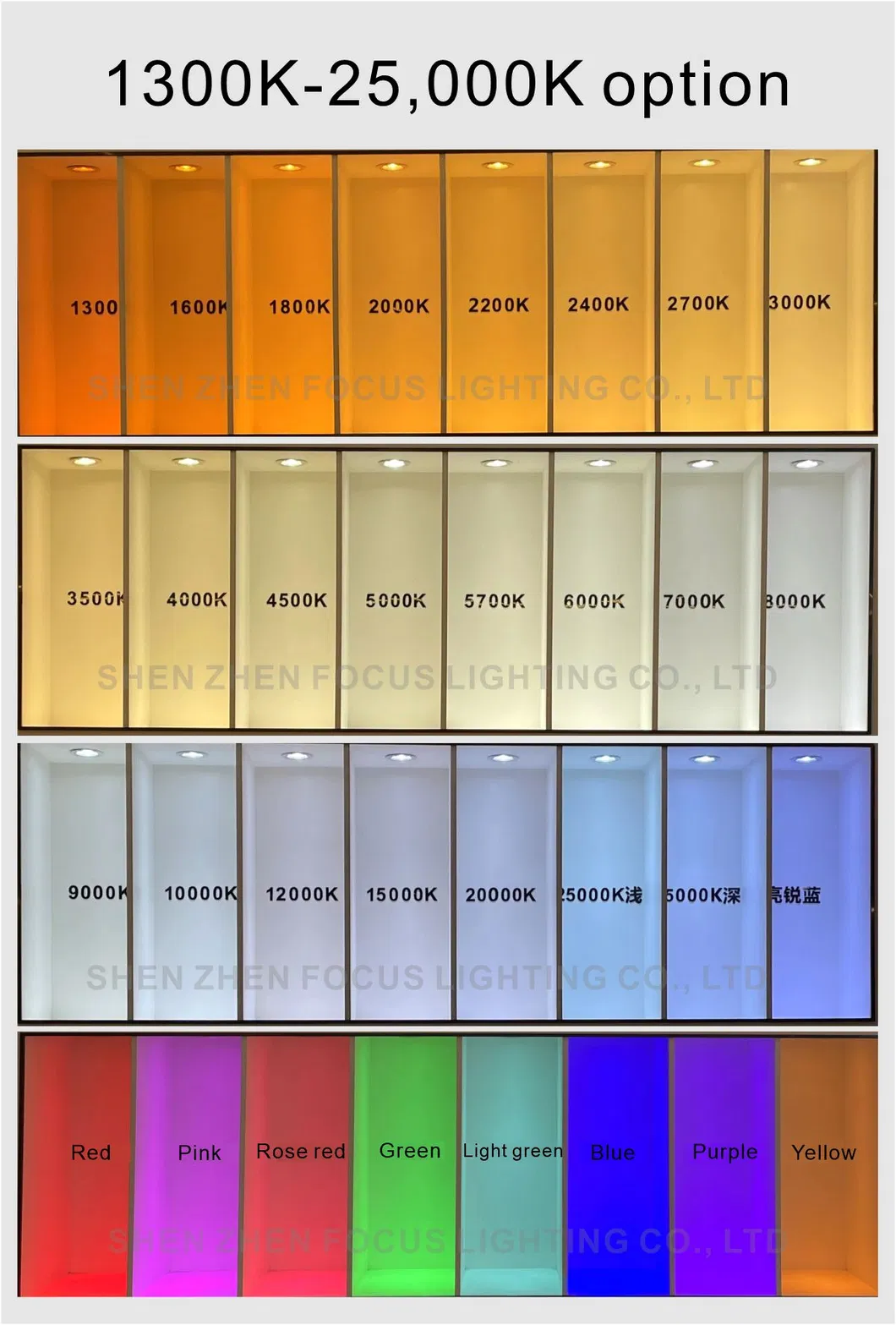

| Color Temperature | 2700K - 5000K, CCT Tunable |

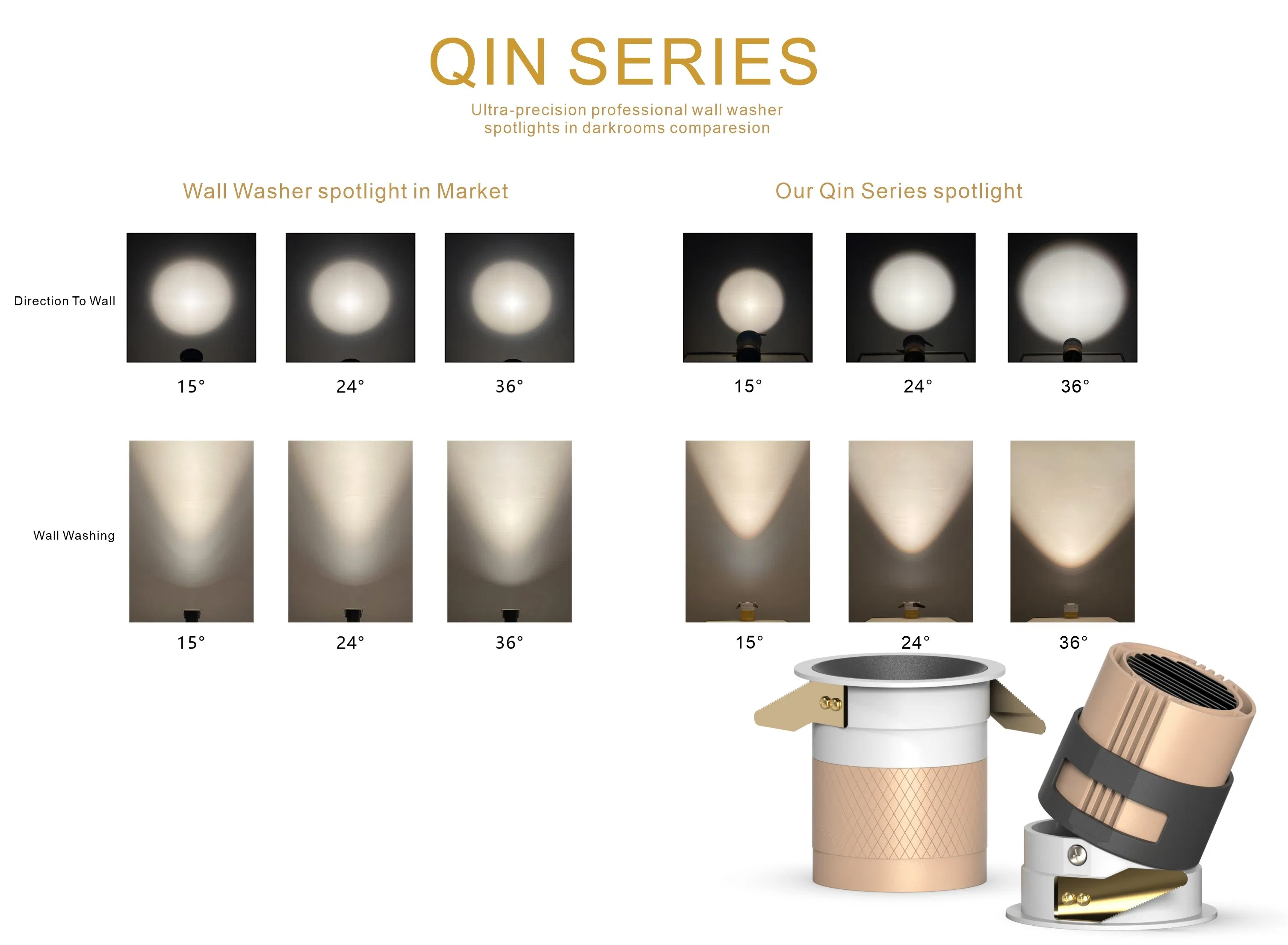

| Beam Angle | 15°, 24°, 36° |
| IP Rating | IP20 (IP65 customized) |
| Housing Color | White, Black |
| Reflector Color | Red Gold, Black Gold |
| Certification | CE, FCC, RoHS |
| Dimming Options | ON-OFF, 1-10V, Triac, PWM, DALI, Tuya ZigBee |
| Power Type | Dimension | Cut Hole | Direction | Beam Angle |
|---|---|---|---|---|
| 12W (Trim) | φ82*H63/72/83mm | φ75mm | Fixed | 15°/24°/36° |
| 12W (Trimless) | φ70*H63/72/83mm | φ75mm | Fixed | 15°/24°/36° |
| 12W (Trim Adj.) | φ82*H80/89/105mm | φ75mm | Adjustable | 15°/24°/36° |
| 12W (Trimless Adj.) | φ70*H80/89/105mm | φ75mm | Adjustable | 15°/24°/36° |

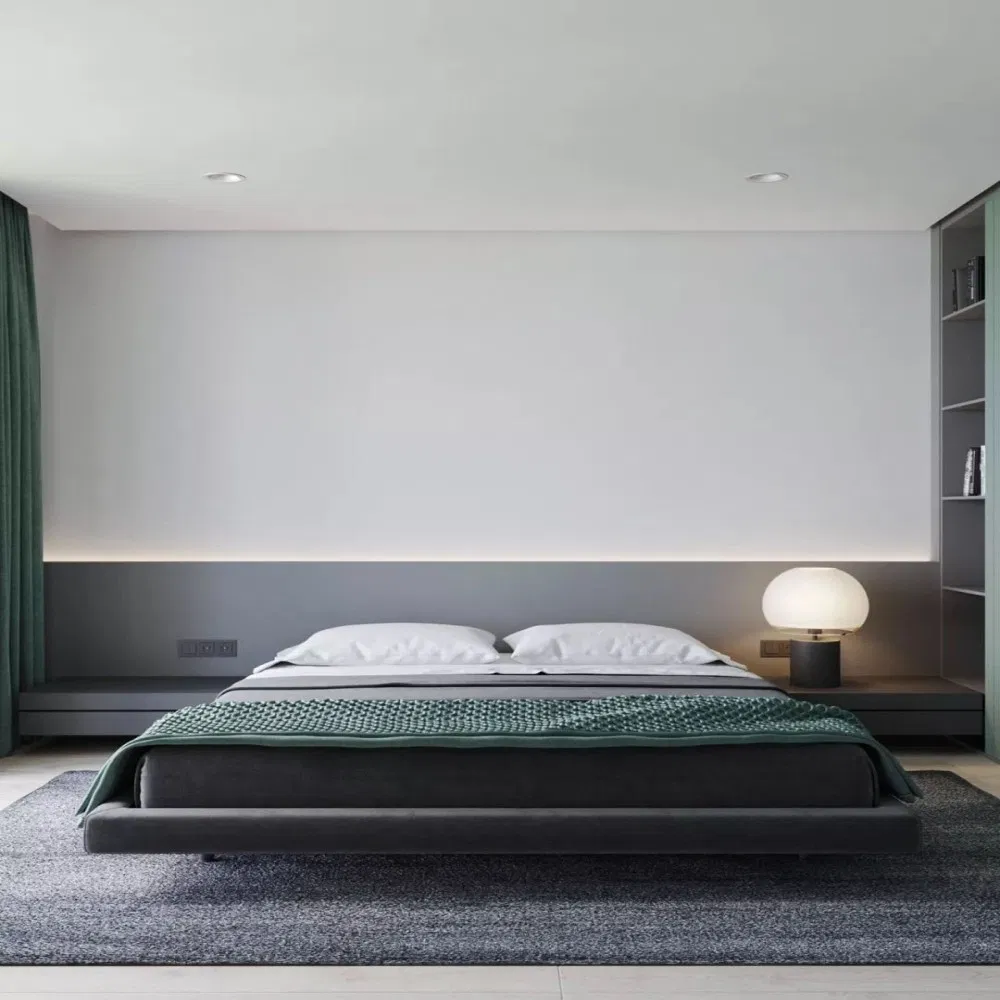

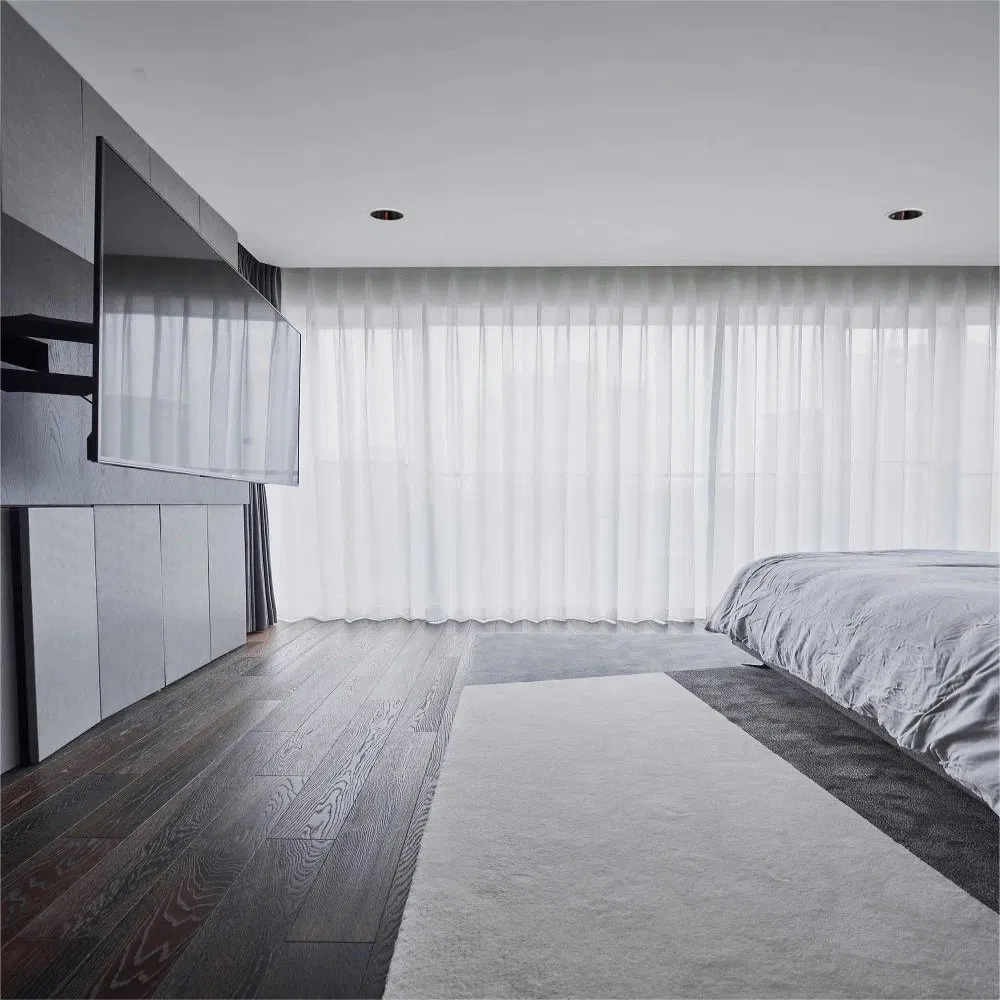

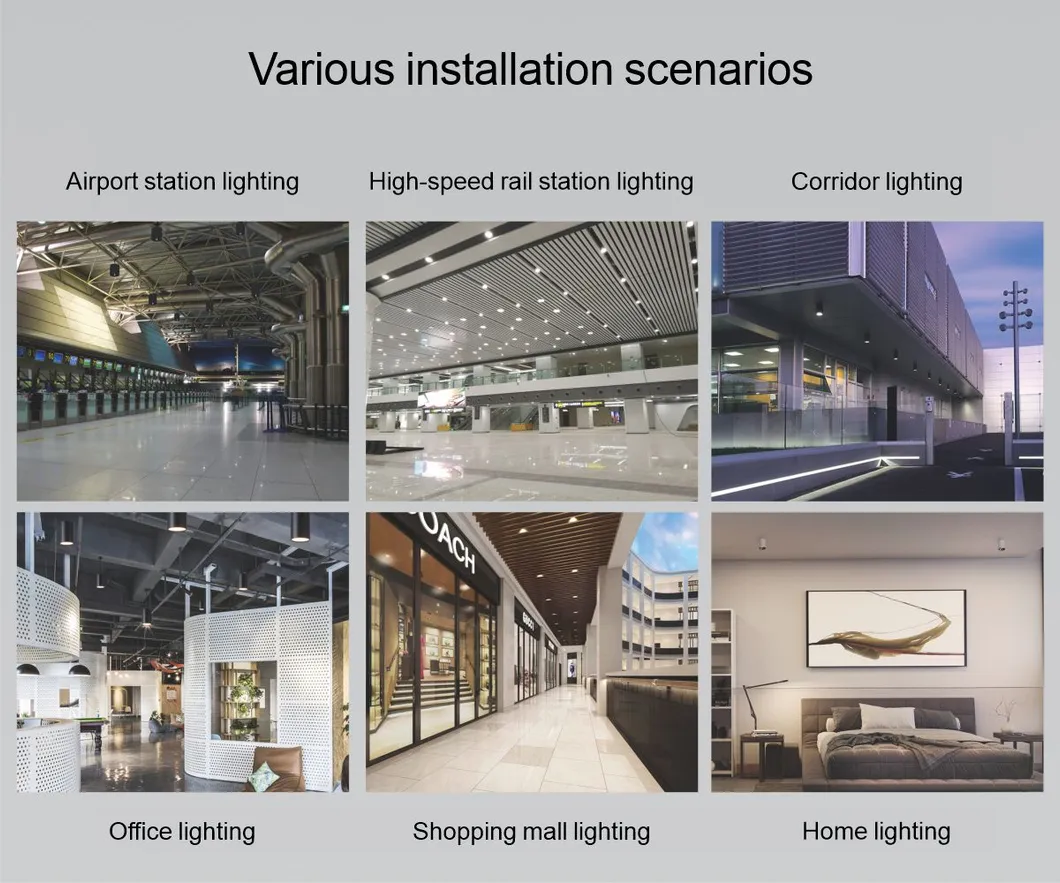

Our premium recessed LED downlights are engineered for diverse environments, providing high-quality lighting solutions for professional and residential spaces.

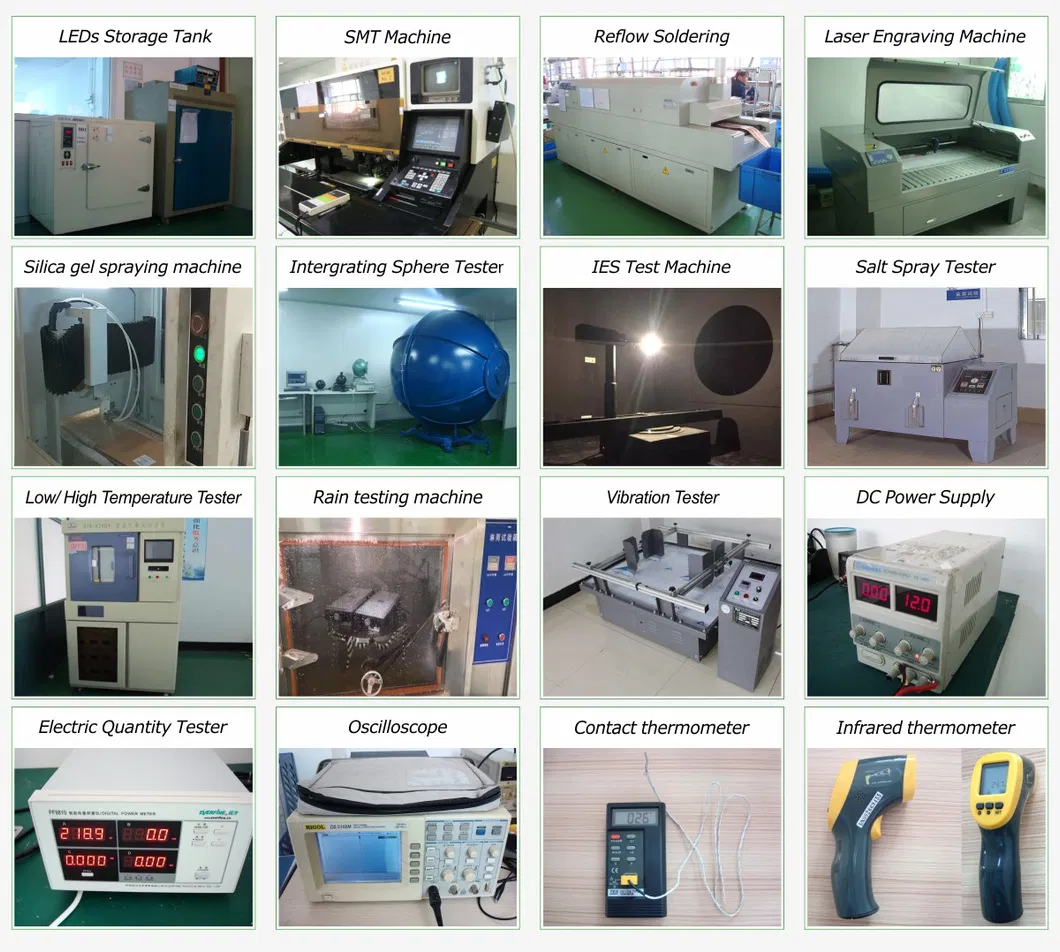

Specializing in high-performance LED lighting since 2010, we utilize an experienced R&D team and professional testing instruments. Our production quality control system covers every stage from design to final delivery. We have extensive experience in OEM/ODM services, particularly in designing custom LED drivers to satisfy unique functional requirements.
