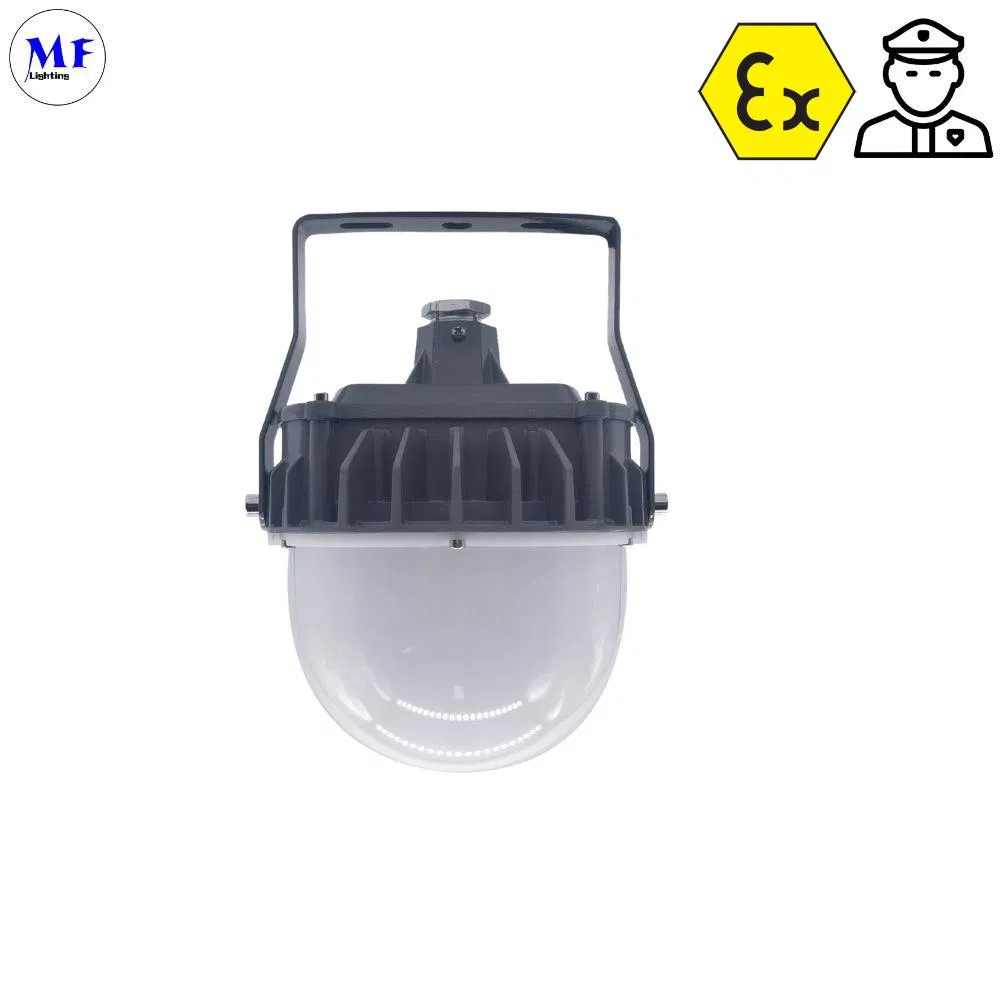

20W 40W 60W LED Explosion Proof Light IP66 Metal LED Lamp High Bay Area Light for Oil Gas LNG Heavy Industrials Station Hanging Wall Mounted Work Light

1 / 5

20W 40W 60W LED Explosion Proof Light IP66 Metal LED Lamp High Bay Area Light for Oil Gas LNG Heavy Industrials Station Hanging Wall Mounted Work Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Product Overview

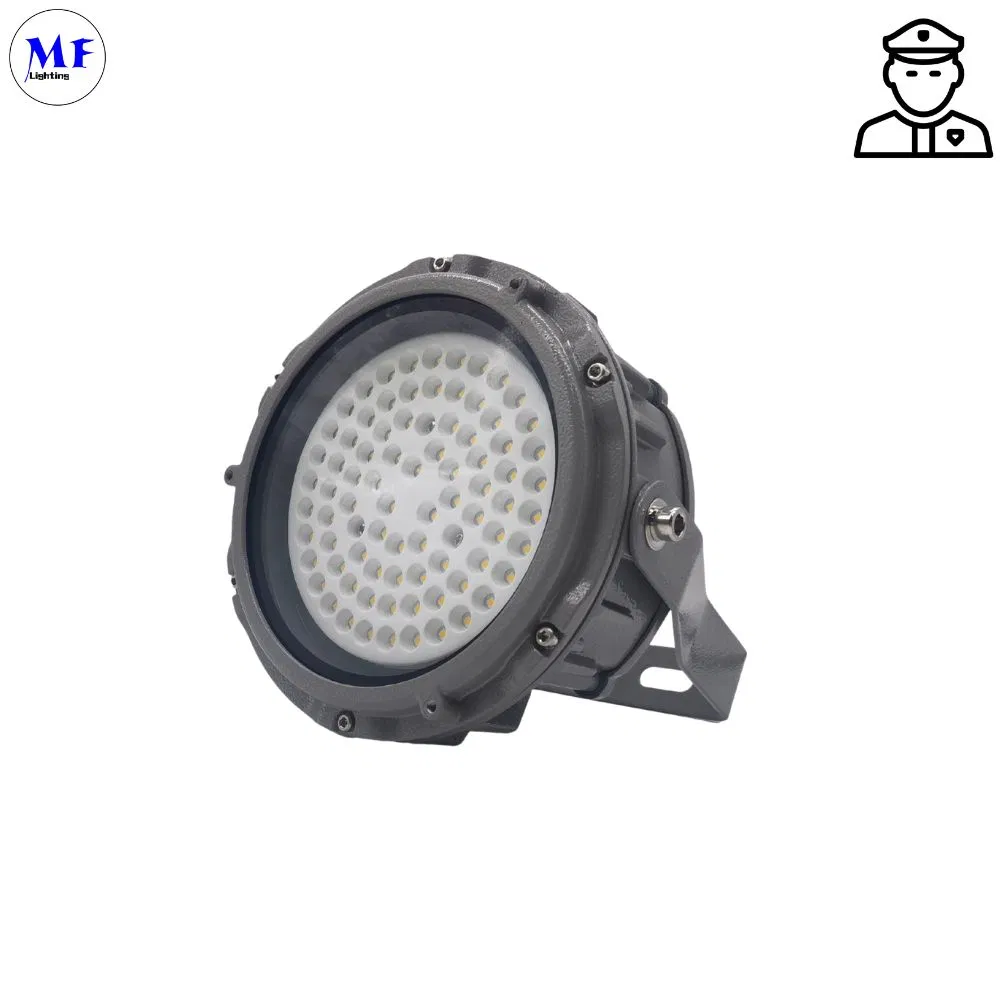

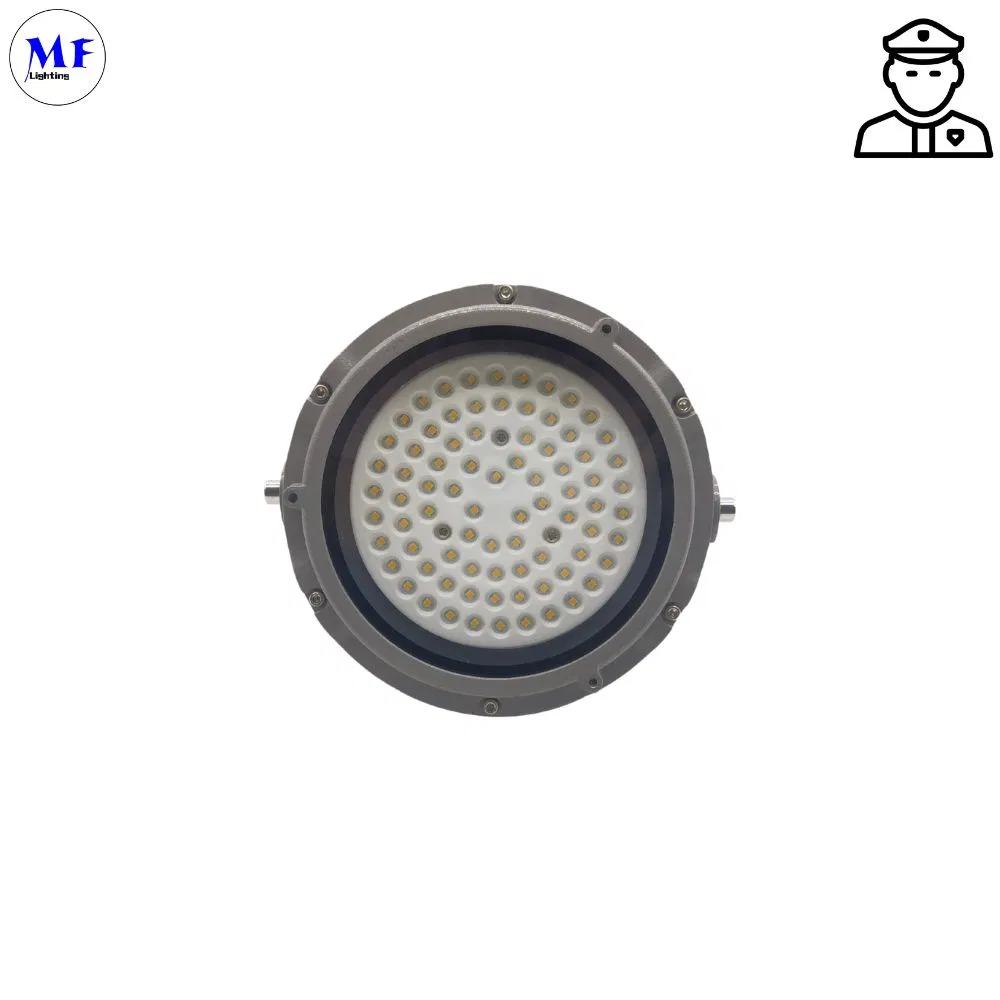

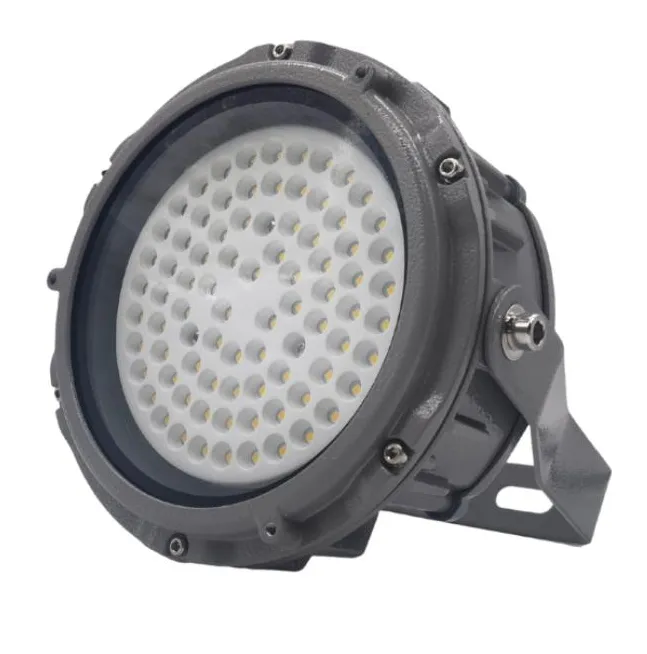

20W 40W 60W LED Explosion Proof Light IP66 Metal LED Lamp High Bay Area Light for Oil Gas LNG Heavy Industrials Station Hanging Wall Mounted Work Light

Basic Information

Model NO.

EX-20WB3YZDA

Input Voltage

AC100-277V 50/60Hz

Power

20W/40W/60W

Color Temperature

2000K-7000K

Certification

CCC, CE, EMC, ETL, LVD, RoHS, SAA, Ex/Atex/Iecex

Luminous Flux

130lm/W

Beam Angle

40°,60°,90°,120°

Protection

IP66 / IK10

Operating Temp.

-40°c ~ +55°c

Warranty

5 Years

Quick Detail & Markings

Marking ATEX II 2 G Ex eb mb IIC T6...T4 Gb
II 2 D Ex tb IIIC T80°C...T100°C Db IP66

Marking IECEx Ex eb mb IIC T6...T4 Gb
Ex tb IIIC T80°C...T100°C Db IP66

Marking UL844 Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III

Technical Specifications

Item	Power	Color Temp	Voltage	Lumens	Warranty	CRI	Emergency Time
EX-20W B3YZDA	20W	2200K-7000K	AC200-250V/DC12-48V	2600	5 years	70	3 Hours
EX-40W B3YZDA	40W			4200
EX-60W B3YZDA	60W			7800

Note: "Y"=D (Dimmable) or N (Non-dimmable); "Z"=CCT (22 for 2200K to 70 for 7000K); "D"=Beam Angle (D40/D60/D90/D120).

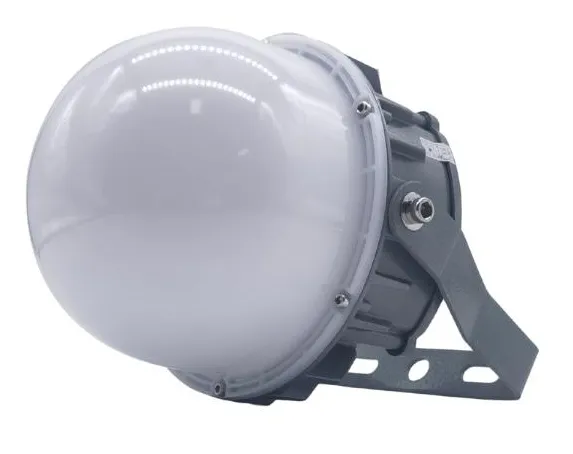

Materials & Features

Materials

Housing: Copper-free aluminum
Lens: Tempered glass
Hardware: Stainless steel
Mounting Bracket: Stainless steel

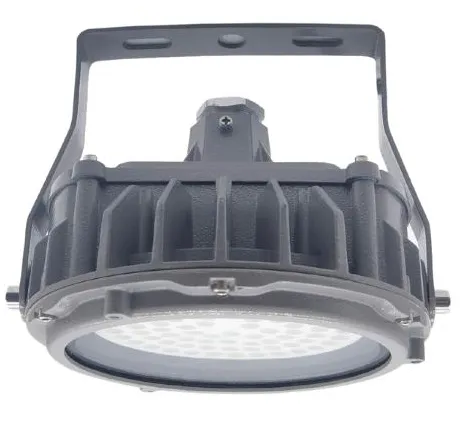

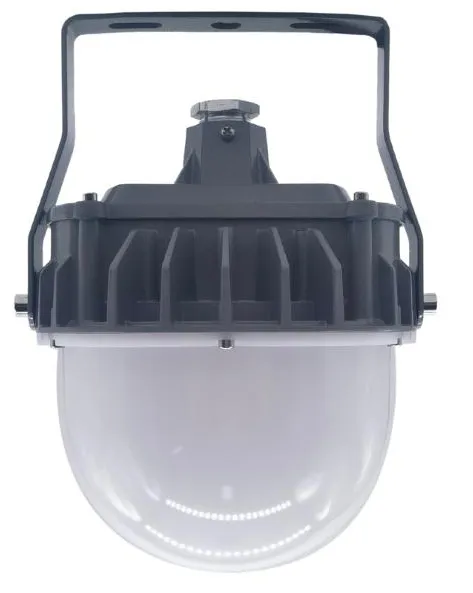

Key Features

High quality SMT LED chips
Heavy-duty & high impact resistance
Replaceable LED board and drivers
Integrated junction box
Marine rating powder coated finish
Multiple installation methods

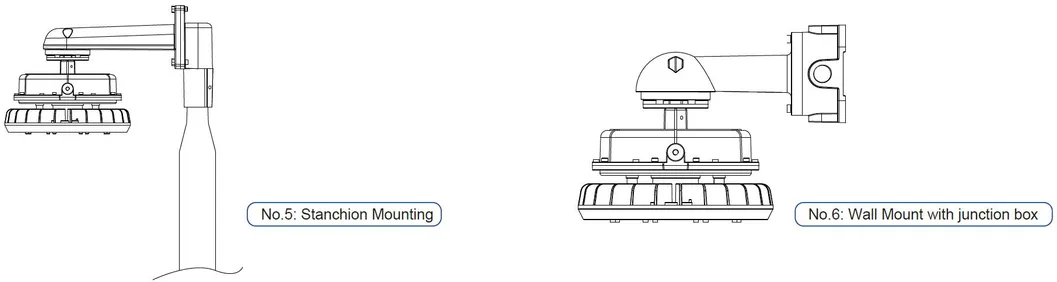

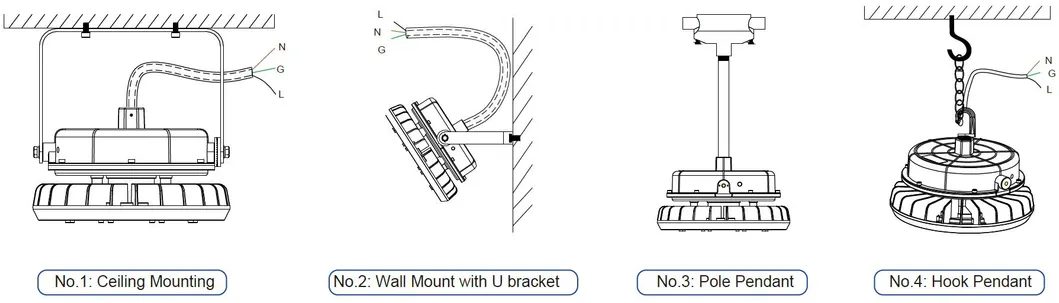

Installation & Photometry

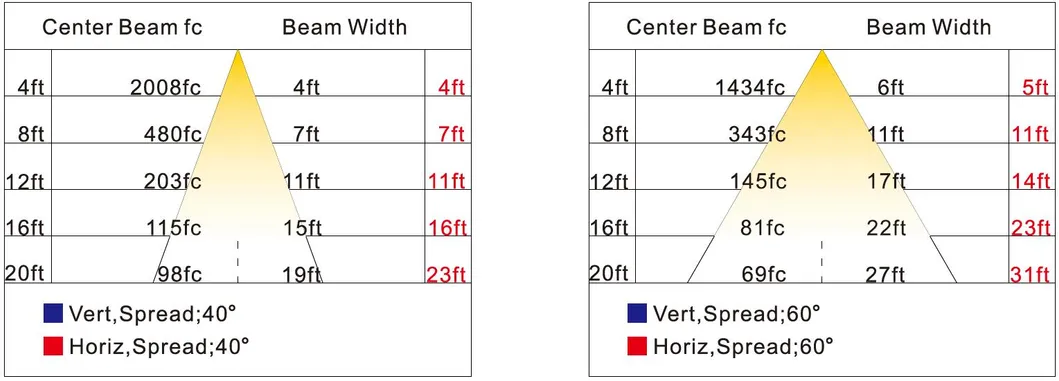

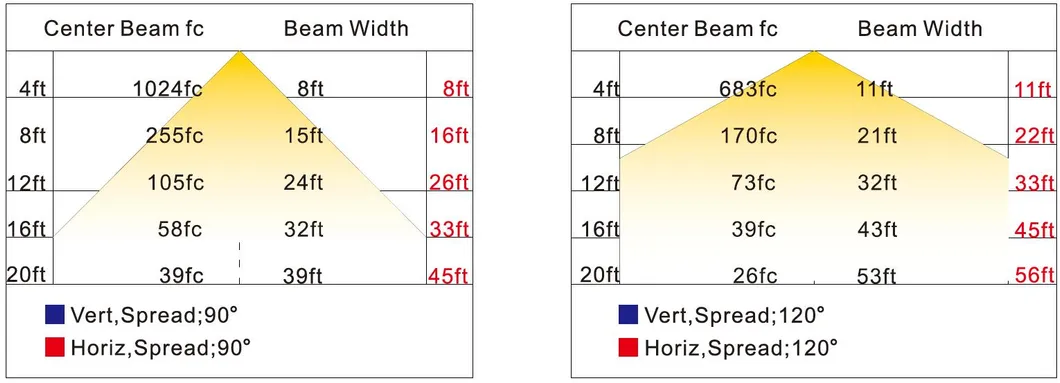

Light Distribution

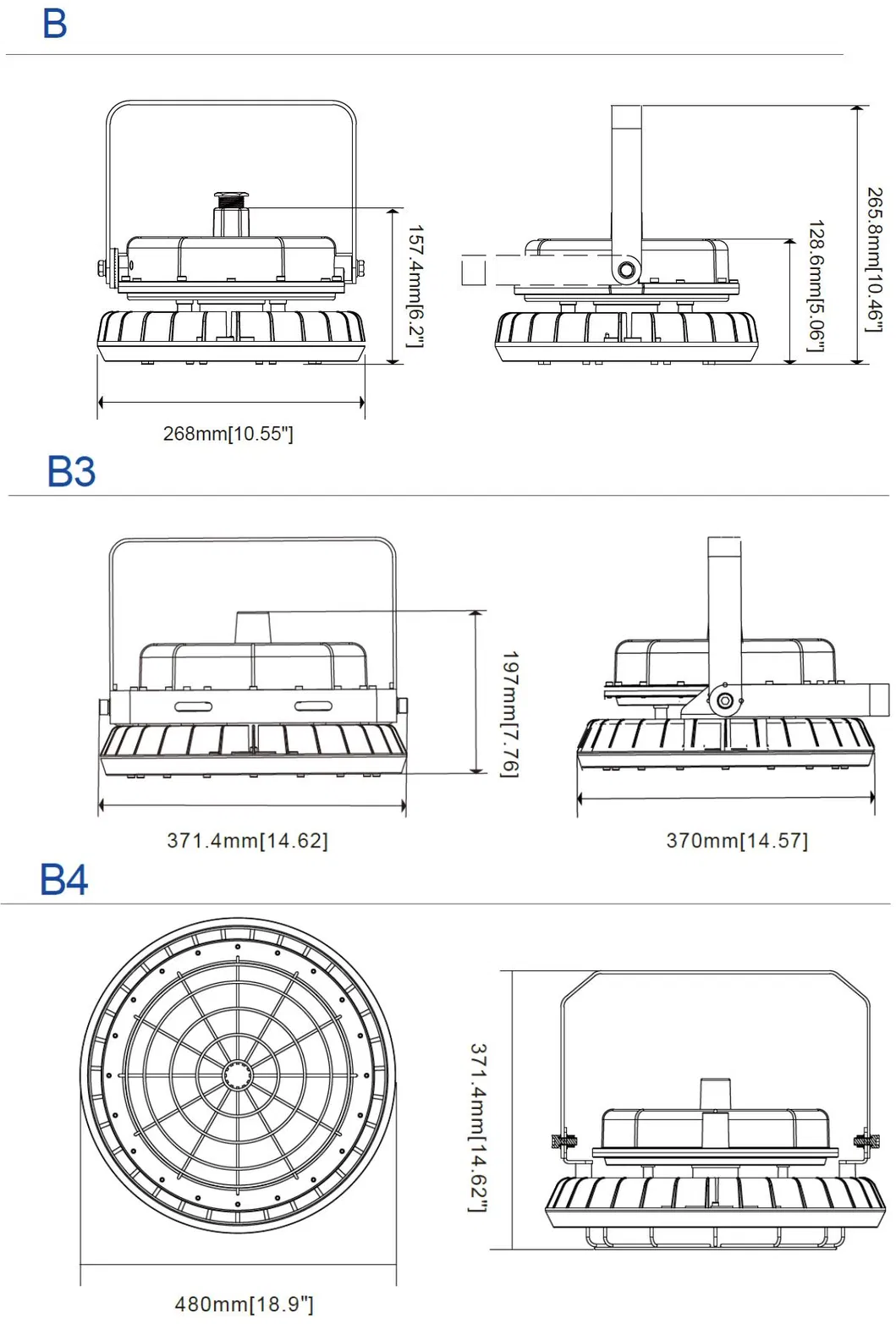

Dimensions & Packaging

Item	Qty/Carton	Packing Size (mm)	N.W (KG)	G.W (KG)
B3 Series	1	300300250	2.2	2.8

Sea transportation / Air transportation / Rail transportation / International express

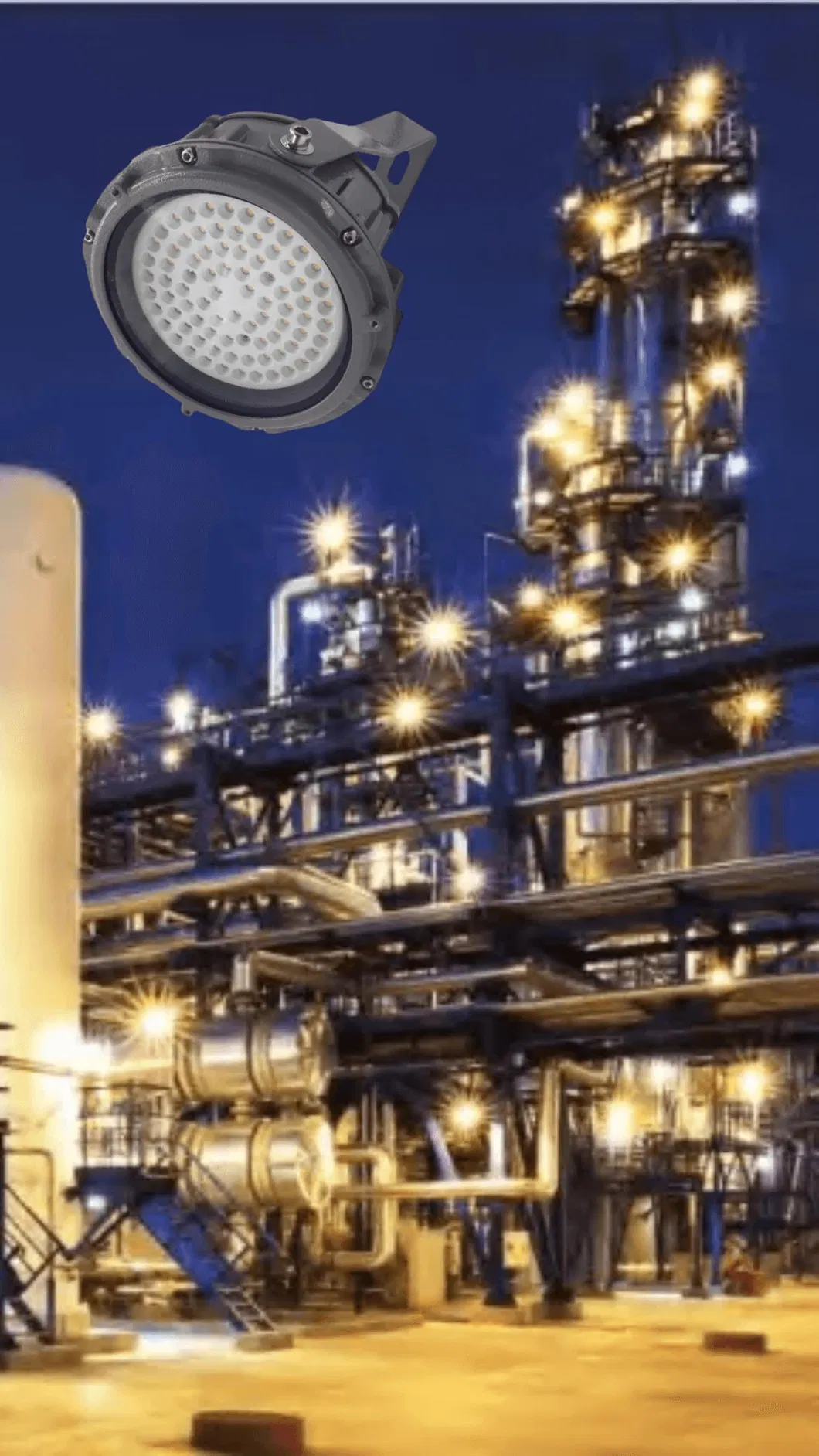

Applications

Oil and Gas industry
• Production, refining, loading, storage, and LNG industry.

Chemical industry
• Paint facilities, chemical storage, and ocean platforms.

Metal treatment
• Steel and aluminum factories, smelting, and foundry operations.

Food and alcohol
• Flour production, distilling, and high humidity locations.

Frequently Asked Questions

What is the primary function of explosion-proof lights?

The main function is to prevent internal electric arcs, sparks, or high temperatures from igniting flammable gases and dust in the surrounding environment, ensuring safe lighting in hazardous areas.

Which industries require these explosion-proof lamps?

They are essential for petrochemical enterprises, coal mining, offshore platforms, pharmaceutical production, and ports/docks handling sensitive materials.

What are the available power options and lumens?

We offer 20W (2600lm), 40W (4200lm), and 60W (7800lm) versions, all providing high-efficiency lighting at 130lm/W.

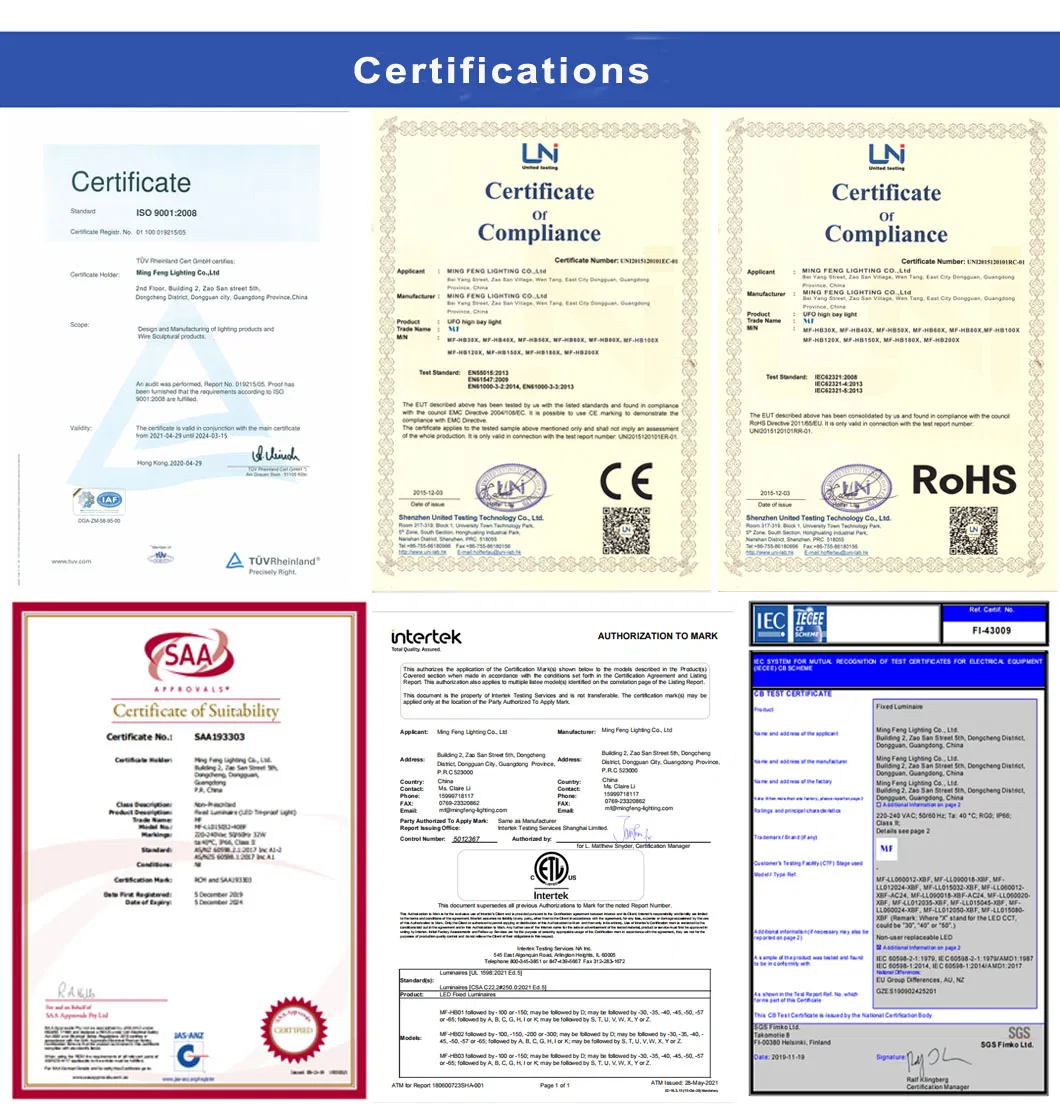

What certifications do these lights hold for hazardous locations?

The lights are certified with ATEX, IECEx, and UL844 (North American standards), making them suitable for Class I, II, and III hazardous environments.

Can these lights withstand harsh marine environments?

Yes, they feature a marine-rated powder-coated finish and are UL1598A certified, designed to resist high wind speeds and saline corrosion.

Is there an emergency battery backup option?

Yes, an emergency function is available with a battery backup providing up to 3 hours of operation during power failures.
