Detailed Parameter Table
| Product model | ZN-LD-04-LED-50W-200w |
Power brand | High Efficiency Drivers |
| Input Voltage | 100-240V |
Whole lighting effect | 110-150LM |
| LED chip brand | Corey, Puri |
Intelligent system | PLC/Mobile phone |
| Warranty | 2-5 years |
Power efficiency | >0.97 |
| Dimmable | 1-10V / PWM / Optional |
Surge protection | 10KV |
| Operating voltage | AC100V-480V |
Specifications | 50W-200W |
| Product material | Die-cast aluminum |
Shipping packaging | Plastic bags, cardboard and foam |
| Certify | CCC, CE |
Beam angle | T2/T3/T4 |
| Color temperature | 3000K, 4000K, 5000K, 6500K |
CRI | >80 |
| Level of protection | IP66 |
Shell color | Black, gray |
| Work hours | >50,000 Hour |
Operating temperature | -40ºC~+70ºC |
Product and Packaging Dimensions
| Product model |
ZN-LD-04-LED60W |
ZN-LD-04-LED150W |
ZN-LD-04-LED200W |
| Power | 60W | 90W-150W | 120W-200W |
| Product size | 540*290*100 | 640*290*100 | 740*290*100 |
| Number of LEDs | 60 Self | 150 Self | 200 Self |
| Net weight | 2.7kg | 3.3kg | 3.9kg |
| Gross weight | 3.2kg | 4.2kg | 4.8kg |
| Package size | 580*320*100 | 670*320*100 | 760*320*100 |

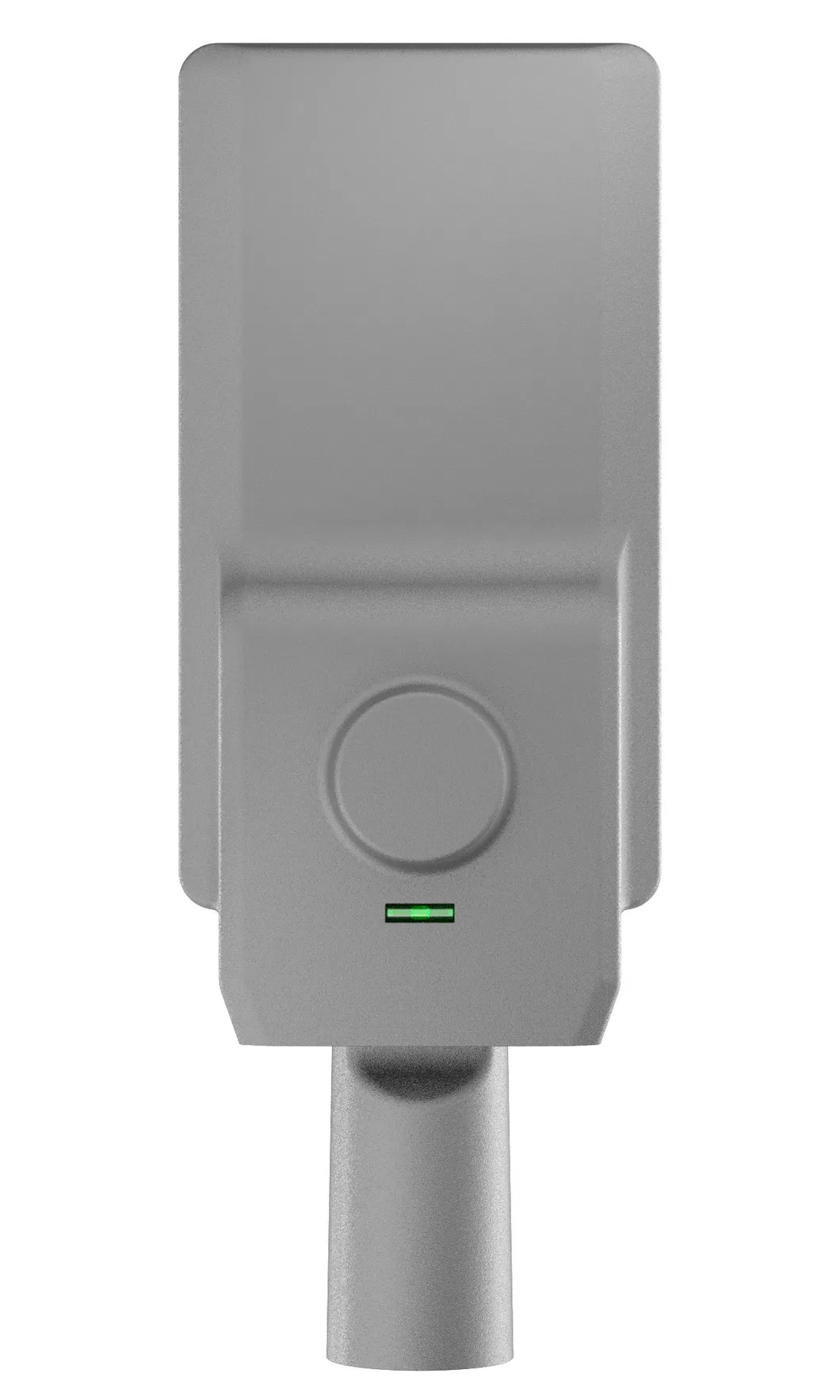

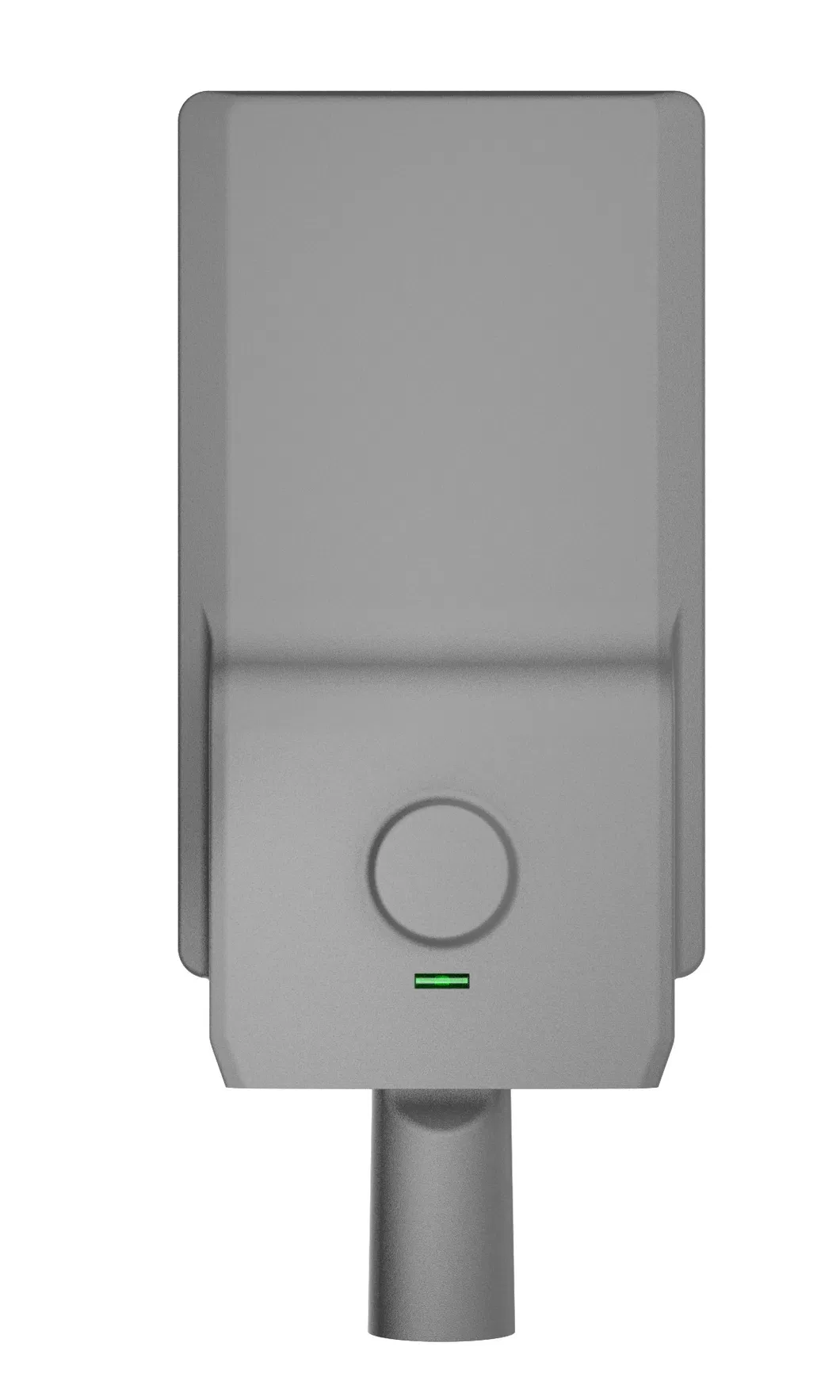

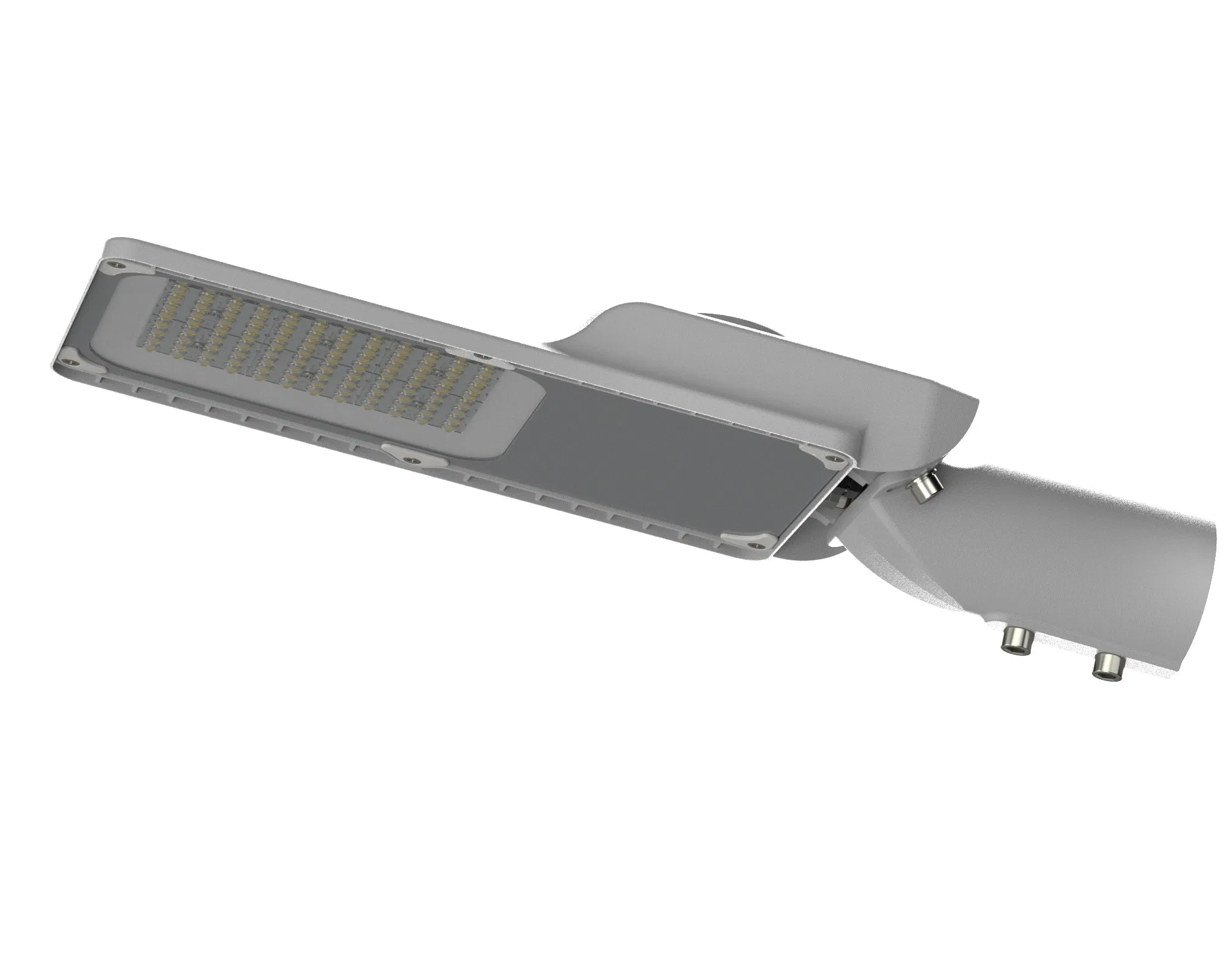

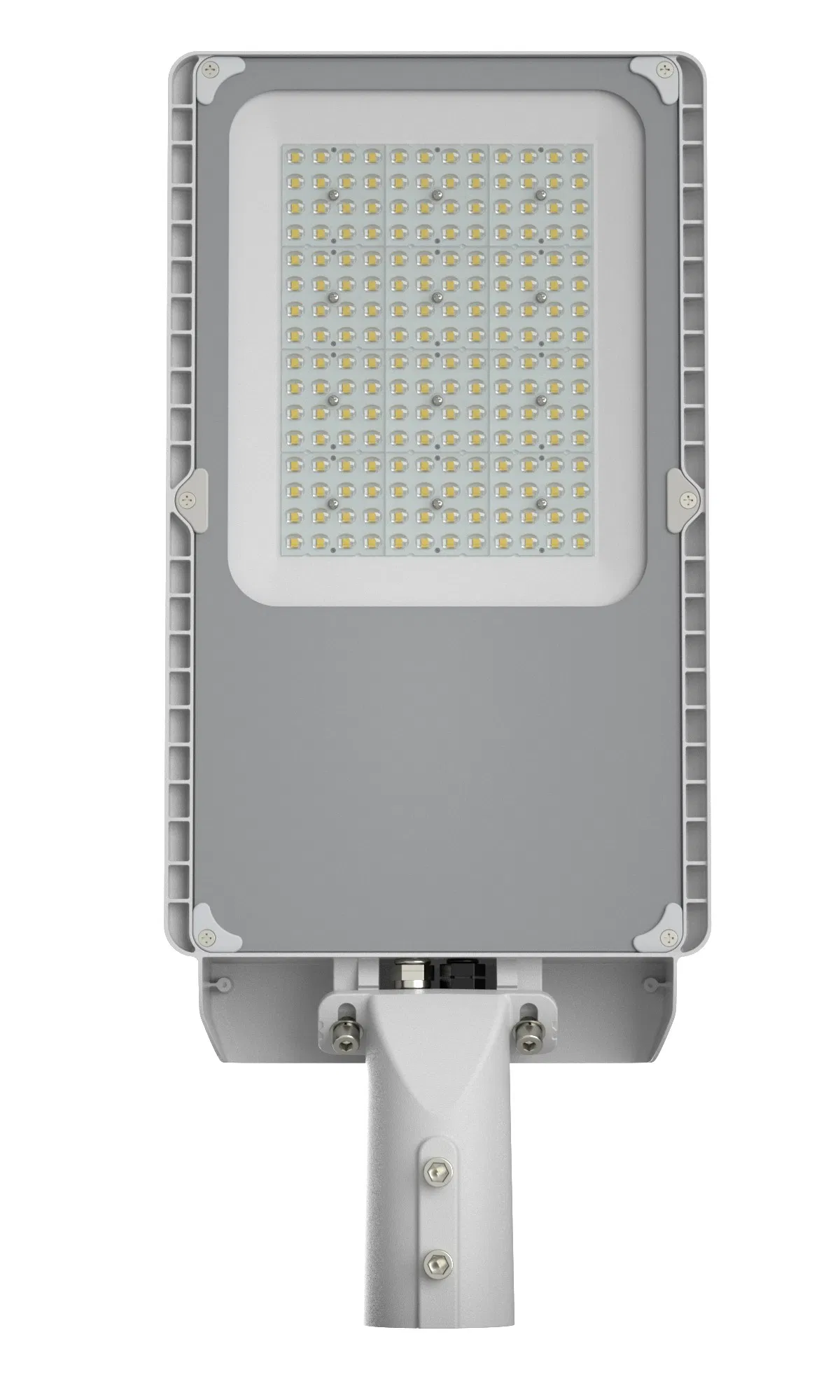

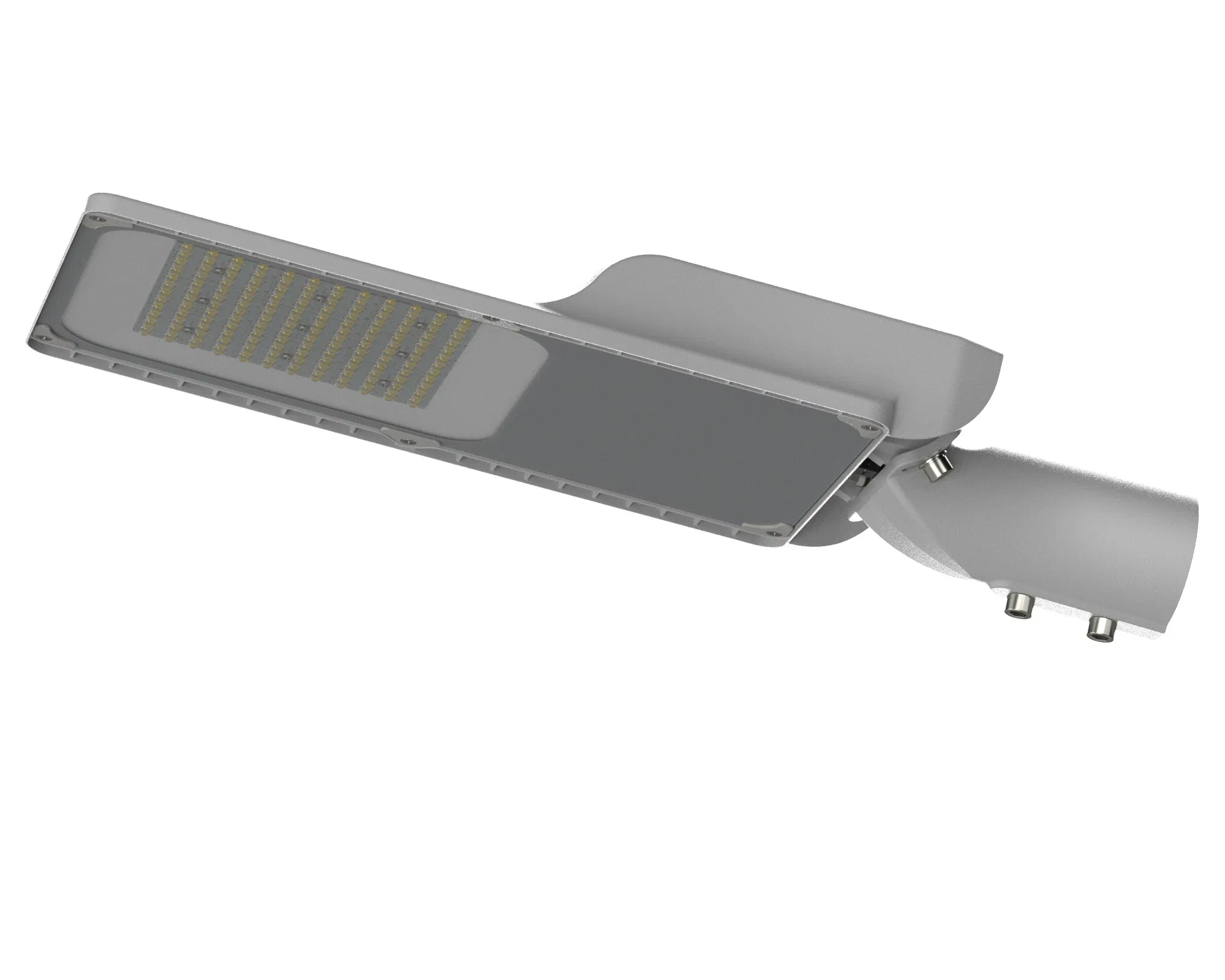

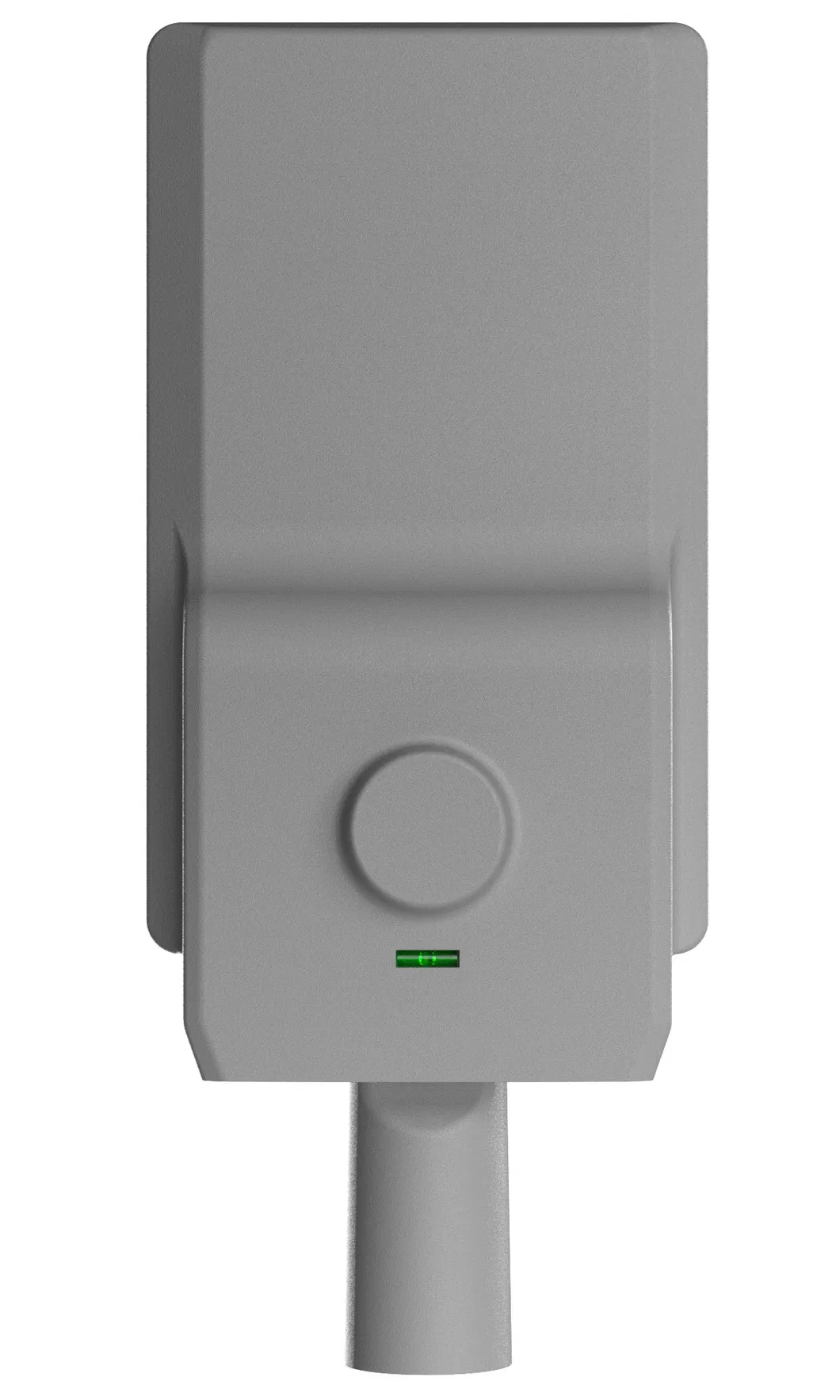

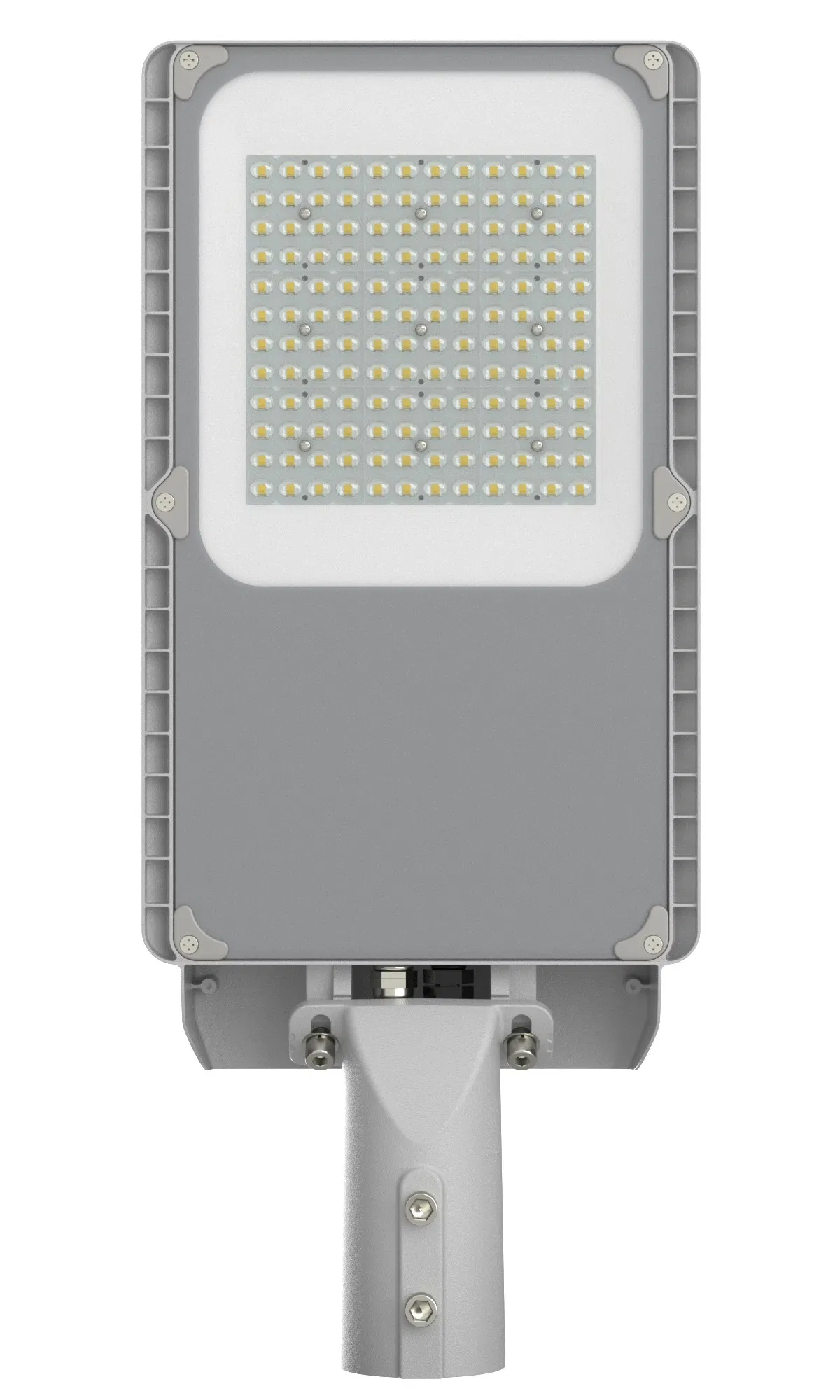

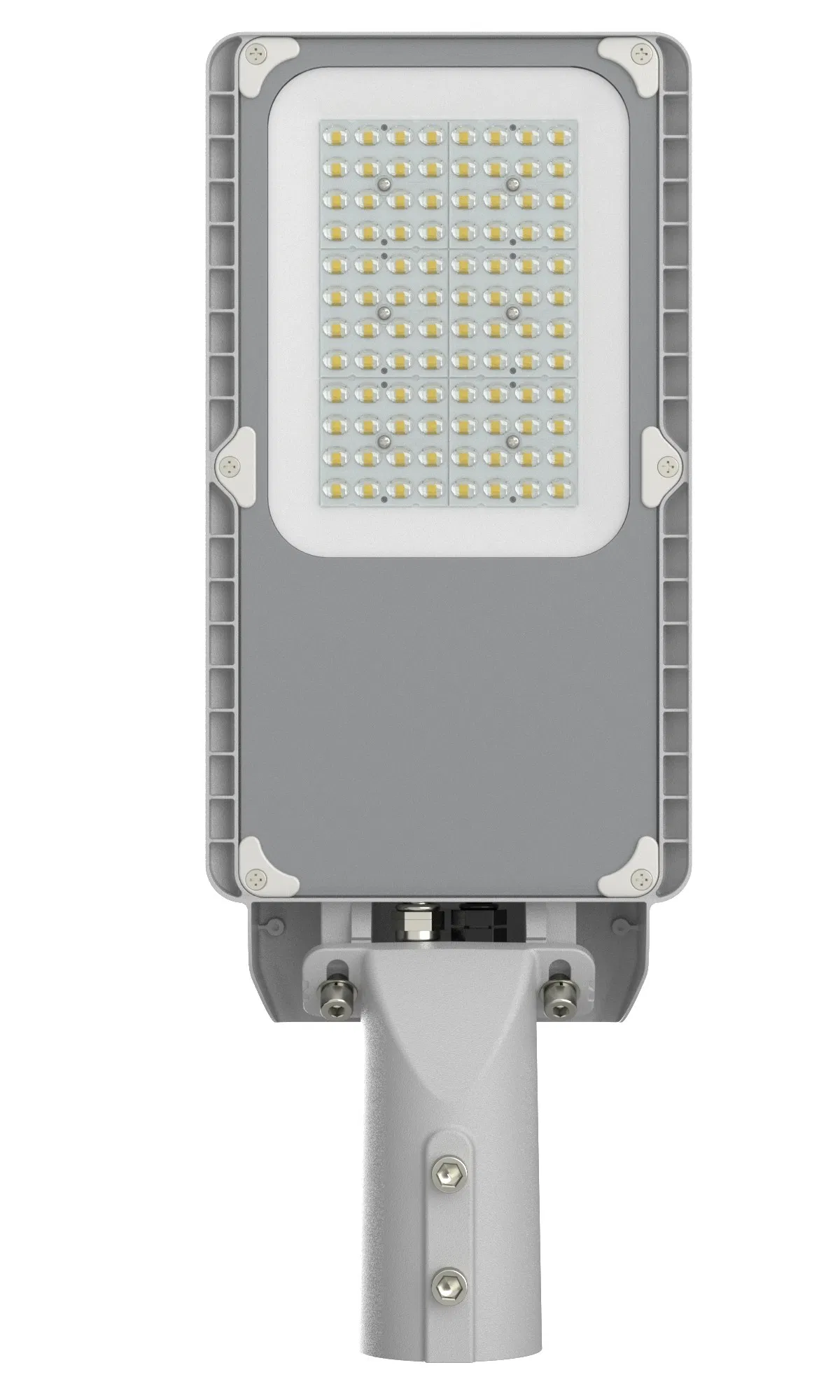

Product Gallery
Features and Advantages
✔

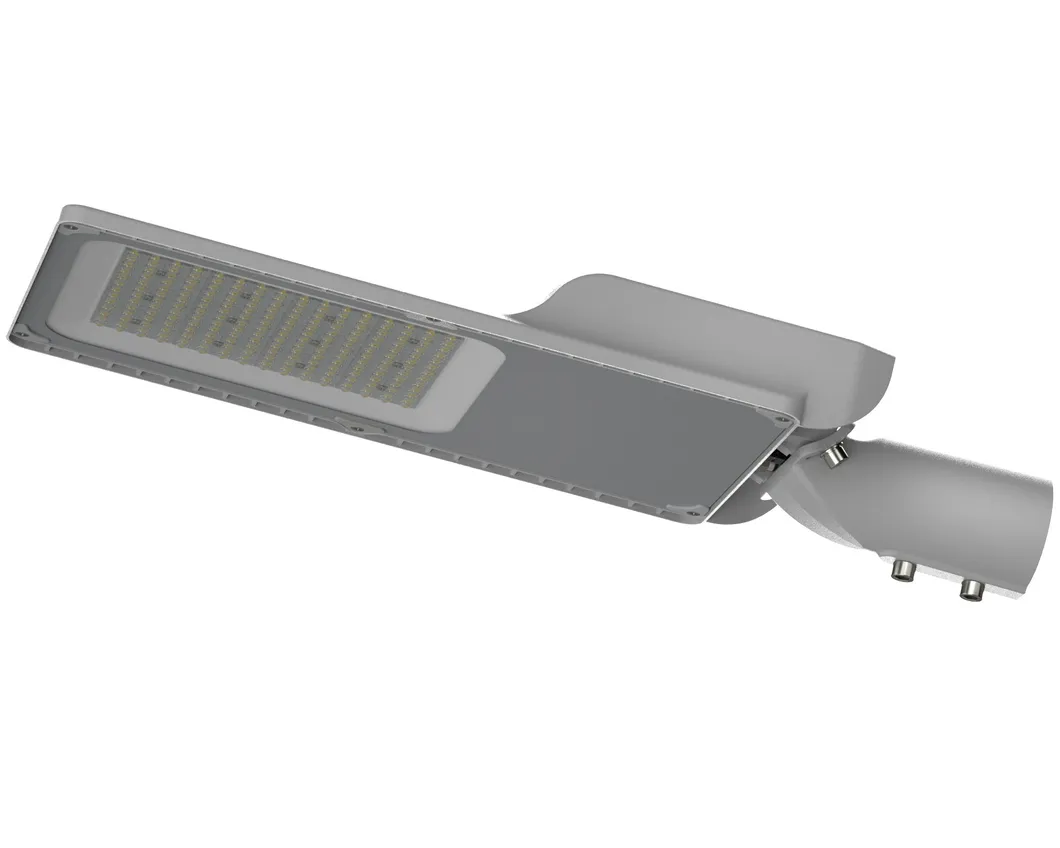

Adjustable angle design to accommodate different lamp poles. The lamp body is die-cast aluminum, which can dissipate heat efficiently.
✔
There are Four models to choose from, with a power range of 60-200W.
✔
High brightness 3030 SMD (150 LM/Watt) with premium drivers, offering a 5-year warranty.
✔
IP66, CE, RoHs certification with a 50,000 hours service life.
✔
Automatic dawn-to-dusk switching and Lora intelligent system for area control.

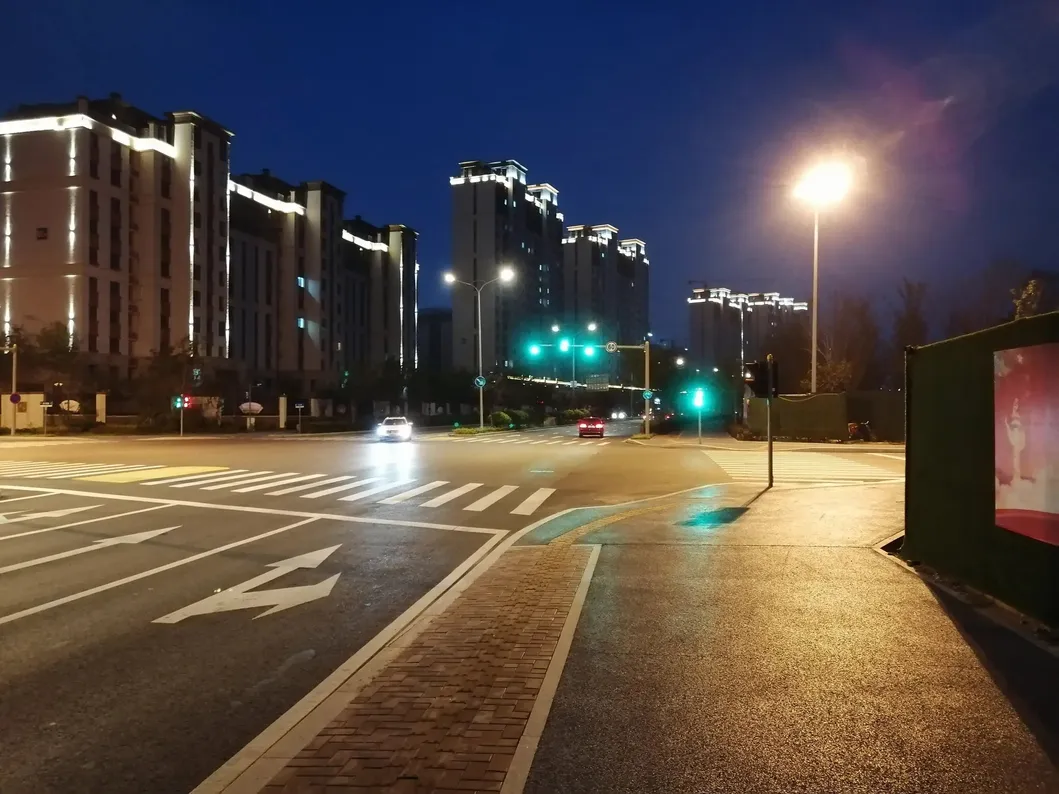

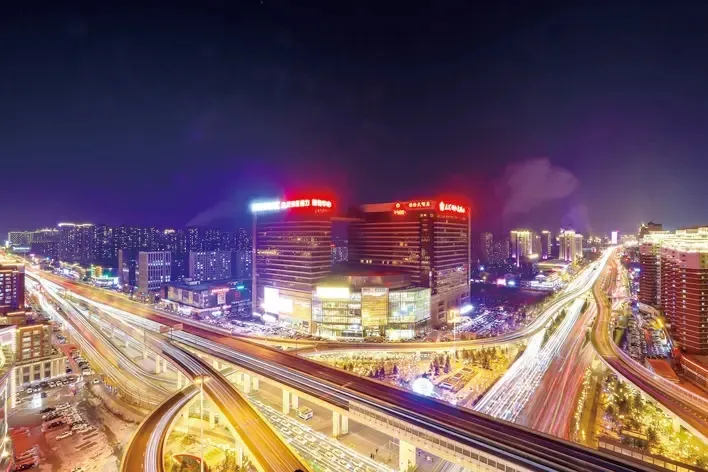

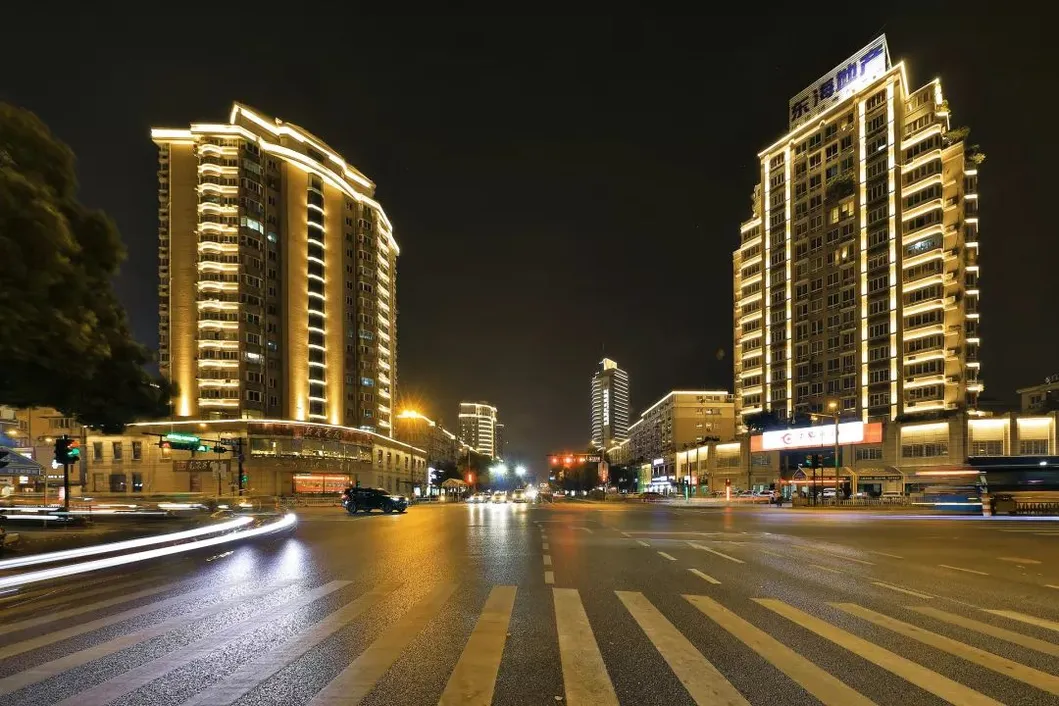

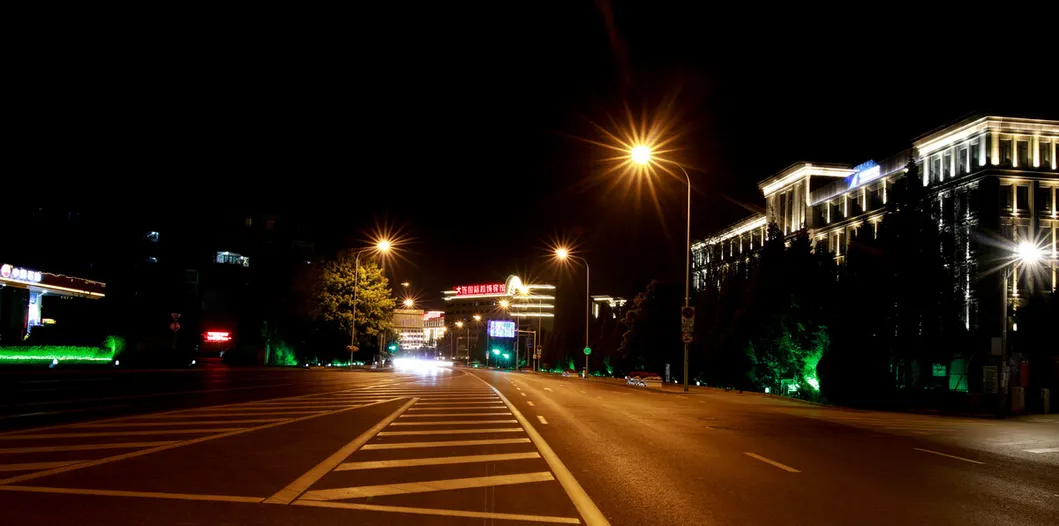

Scope of Application
Urban expressways, main roads, welcome roads, leading roads to government agencies and large public buildings, urban commercial center roads.
?
Frequently Asked Questions
Q1: What is the protection level of these LED street lamps?
A1: These lamps are rated at IP65 and IP66, providing excellent protection against water and dust, making them suitable for all outdoor weather conditions.
Q2: What is the expected lifespan and warranty period?
A2: The lamps have a service life of over 50,000 hours and come with a standard 2 to 5-year warranty depending on the specific configuration.
Q3: Are these lamps dimmable or smart-control compatible?
A3: Yes, they support 1-10V/PWM dimming and are compatible with Lora intelligent systems for single group or area control.
Q4: What materials are used for the lamp body?
A4: The lamp body is made of high-quality die-cast aluminum, which ensures efficient heat dissipation and durability.
Q5: Can the installation angle be adjusted?
A5: Yes, the lamp features an adjustable angle design to accommodate different types of lamp poles and lighting requirements.
Q6: What power options are available for this series?
A6: We offer a variety of power specifications ranging from 50W to 200W to meet different municipal and engineering needs.
